Imagine a world where digital audio sounds crisp and clear, free from distortion and artifacts. Understanding and applying the Nyquist frequency concept in signal processing can make this reality possible.

The Nyquist frequency is the highest frequency that can be accurately sampled and reconstructed from a digital signal without introducing aliasing artifacts. It is defined as half the sampling rate of a discrete signal processing system. This fundamental principle, derived from the Nyquist-Shannon sampling theorem, is crucial in various fields, such as audio engineering, telecommunications, and image processing.

Engineers can avoid aliasing and maintain signal integrity by ensuring that the sampling rate is at least twice the signal’s highest frequency component.

Understanding the Nyquist frequency empowers audio professionals and digital signal processing experts to make informed decisions about sampling rates and signal bandwidth. It enables them to capture and reproduce high-quality audio, optimize data transmission systems, and enhance digital imaging techniques.

The Nyquist frequency is a fundamental concept in digital signal processing that sets the upper limit for accurately sampling a continuous signal. It plays a crucial role in ensuring the quality and fidelity of digital representations of analog signals.

The Nyquist frequency is defined as half the sampling rate of a discrete signal processing system. It represents the highest frequency that can be accurately captured and reconstructed from a sampled signal without introducing distortion or aliasing.

For example, if a system samples at 44.1 kHz, its Nyquist frequency would be 22.05 kHz. This means frequencies up to 22.05 kHz can be accurately represented in the digital domain.

Understanding the Nyquist frequency is essential for proper signal sampling and reconstruction. It helps determine the minimum sampling rate required to capture a signal’s full frequency content without loss of information.

The concept of Nyquist frequency emerged from the work of two pioneering engineers: Harry Nyquist and Claude Shannon.

In the 1920s, Harry Nyquist, a Swedish-American physicist and engineer, laid the groundwork for this concept while working at Bell Labs. He studied telegraph transmission theory and developed insights into sampling and information theory.

Claude Shannon, often called the father of information theory, built upon Nyquist’s work in the 1940s. Shannon formalized the sampling theorem, which states that to reconstruct a signal accurately, the sampling rate must be at least twice the highest frequency component in the signal.

Their combined contributions formed the foundation of modern digital signal processing and communication theory.

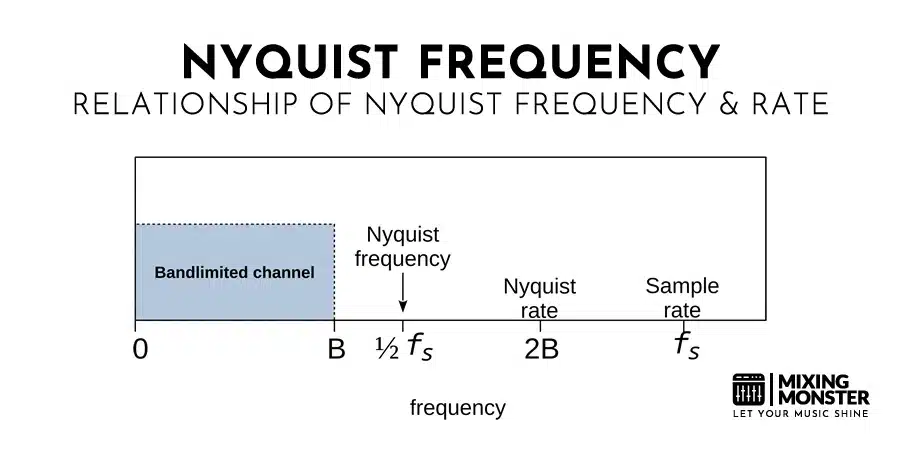

The sampling rate and Nyquist frequency are intimately connected. The Nyquist frequency is always exactly half of the sampling rate.

This relationship can be expressed as:

Nyquist frequency = Sampling Rate / 2

For instance, a CD-quality audio signal sampled at 44.1 kHz has a Nyquist frequency of 22.05 kHz. This sampling rate was chosen to capture the full range of human hearing, which typically extends to about 20 kHz.

Choosing the right sampling rate is crucial. If the sampling rate is too low, high-frequency components of the signal may be lost or distorted due to aliasing.

The Nyquist frequency is paramount in digital signal processing and data acquisition systems. It helps engineers and designers determine the appropriate sampling rates for various applications.

The Nyquist frequency ensures that all audible frequencies are captured without distortion in audio processing. This is why CD-quality audio uses a 44.1 kHz sampling rate, providing a Nyquist frequency above the upper limit of human hearing.

Understanding the Nyquist frequency helps data acquisition systems prevent aliasing, in which high-frequency components appear as lower frequencies in the sampled signal. This is crucial in applications like radar, sonar, and medical imaging.

The concept also plays a vital role in communication systems, helping determine bandwidth requirements and signal processing techniques for efficient data transmission.

The Nyquist-Shannon sampling theorem is the foundation of digital signal processing. It establishes the minimum sampling rate required to represent a continuous signal accurately in digital form.

The Nyquist-Shannon sampling theorem states that to reconstruct a continuous signal accurately, the sampling frequency must be at least twice the highest frequency component in the original signal. This minimum sampling rate is called the Nyquist rate.

If a signal is sampled below the Nyquist rate, aliasing occurs. Aliasing leads to distortion and loss of information in the reconstructed signal.

The theorem implies that higher-frequency signals require faster sampling rates. This principle guides the design of analog-to-digital converters and digital communication systems.

Bandwidth-limited signals contain frequency components up to a maximum frequency. These signals are crucial in applying the Nyquist-Shannon theorem.

For a bandwidth-limited signal with maximum frequency fmax:

• Minimum sampling rate = 2 * fmax
• Nyquist frequency = fmax

Real-world signals often have infinite bandwidth. To apply the theorem, they must be band-limited using low-pass filters before sampling.

The bandwidth-limited signals enable efficient digital representation of analog signals while minimizing data storage and transmission requirements.

The Nyquist frequency is half the sampling rate. It represents the highest frequency that can be accurately represented in a sampled signal.

Key points:

• Nyquist frequency = Sampling rate / 2
• Frequencies above the Nyquist frequency cause aliasing
• The original signal’s bandwidth must not exceed the Nyquist frequency

Aliasing occurs when frequencies above the Nyquist frequency are present in the sampled signal. These higher frequencies appear lower in the reconstructed signal, causing distortion.

Analog anti-aliasing filters remove frequency components above the Nyquist frequency before sampling to prevent aliasing.

The Nyquist-Shannon sampling theorem finds applications in various fields:

1. Audio processing:
   • CD audio: 44.1 kHz sampling rate (Nyquist frequency: 22.05 kHz)
   • Digital audio workstations
2. Image and video processing:
   • Digital cameras
   • Medical imaging (MRI, CT scans)
3. Telecommunications:
   • Digital telephony
   • Wireless communication systems
4. Scientific instruments:
   • Oscilloscopes
   • Data acquisition systems
5. Control systems:
   • Digital control loops
   • Sensor data processing

These applications rely on the theorem to ensure accurate signal representation and reconstruction. Proper sampling rates prevent aliasing and maintain signal integrity in digital systems.

The Nyquist frequency is a crucial concept in signal processing and digital sampling. It represents the highest frequency that can be accurately captured in a digital signal without aliasing.

The Nyquist frequency is calculated as half the sampling rate of a discrete signal processing system.

For a given sampling rate (fs), the Nyquist frequency (fN) is:

fN = fs / 2

This formula stems from the Nyquist criterion, which states that to reconstruct a continuous analog signal accurately, the sampling rate must be at least twice the highest frequency component of the signal.

For example, if a system samples at 44.1 kHz, the Nyquist frequency would be 22.05 kHz.

In audio processing, CD-quality audio uses a 44.1 kHz sampling rate, resulting in a Nyquist frequency of 22.05 kHz. This covers the typical human hearing range of 20 Hz to 20 kHz.

For Arduino-based projects, the Nyquist frequency is 7.5 kHz, and the sampling rate is 15 kSPS (kilo-samples per second).

In medical imaging, such as MRI scans, the Nyquist frequency determines the maximum spatial frequency that can be resolved without aliasing artifacts.

Seismologists use the Nyquist frequency to ensure accurate recording of earthquake waves, typically sampling at rates that allow for frequencies up to several hundred Hz.

A common misconception is confusing the Nyquist frequency with the Nyquist rate. The Nyquist rate is twice the highest frequency component in a signal, while the Nyquist frequency is half the sampling rate.

Another pitfall is assuming that sampling at exactly the Nyquist rate is sufficient. In practice, sampling should occur slightly higher than twice the highest frequency of interest to account for non-ideal filters and other real-world factors.

Some mistakenly believe that frequencies above the Nyquist frequency are lost. These frequencies are aliased, appearing as false lower frequencies in the sampled signal.

Digital signal analyzers often include built-in Nyquist frequency calculators. These tools can automatically determine the Nyquist frequency based on the input sampling rate.

Spectrum analyzers help identify a signal’s frequency components, assisting engineers to ensure the sampling rate is appropriate for the signal’s bandwidth.

MATLAB and Python offer libraries for signal processing that include functions for working with Nyquist frequencies and sampling processes.

The Nyquist interval can be calculated as the inverse of twice the bandwidth for continuous-time signals. This helps determine the minimum sampling rate required.

Online calculators are available for quick Nyquist frequency computations and are helpful for students and professionals.

Aliasing poses a significant challenge in signal processing, distorting digital representations of analog signals. Understanding its causes and prevention is crucial for accurate signal sampling and reconstruction.

Aliasing is a distortion that occurs when a signal is undersampled. It happens when the sampling frequency is too low to capture the highest frequency components of the signal accurately.

When the sampling rate falls below the Nyquist limit, high-frequency components appear as lower frequencies in the sampled signal. This misrepresentation leads to inaccurate signal reconstruction.

For instance, if a 100 Hz signal is sampled at 150 Hz, it may appear as a 50 Hz signal in the digital domain. This false representation can severely impact signal integrity in various applications.

The Nyquist frequency, defined as half the sampling rate, is crucial in preventing aliasing. It sets the upper limit for the highest frequency that can be accurately represented in a sampled signal.

To avoid aliasing, the sampling rate must be at least twice the highest frequency component in the signal. This requirement is known as the Nyquist-Shannon sampling theorem.

For example, to accurately sample a 20 kHz audio signal, the sampling rate should be at least 40 kHz. This ensures all frequency components are captured without distortion.

Many systems use slightly higher sampling rates to provide a safety margin. CD-quality audio, for instance, uses a 44.1 kHz sampling rate to cover the full range of human hearing.

Aliasing manifests in various forms across different media:

Visual aliasing:

• Moiré patterns in digital images
• Wagon-wheel effect in movies
• Jagged edges in computer graphics

Auditory aliasing:

• Whistling sounds in poorly sampled audio
• Distorted harmonics in music recordings
• Loss of high-frequency detail in speech

In digital imaging, aliasing can create false patterns when sampling high-frequency spatial details. This often results in jagged edges or strange textures in images.

In audio, aliasing can introduce phantom tones or distort existing frequencies. This can make music sound harsh or unnatural, especially in high-frequency instruments like cymbals.

Several techniques help mitigate aliasing effects:

1. Oversampling:
   Sampling at rates higher than the Nyquist frequency.
2. Low-pass filtering:
   An anti-aliasing filter removes frequencies above the Nyquist limit before sampling.
3. Dithering:
   Adding controlled noise to reduce quantization errors.

In digital imaging, anti-aliasing algorithms smooth jagged edges by blending pixel colors, creating the illusion of higher resolution.

For audio, steep low-pass filters are often employed before analog-to-digital conversion. These filters attenuate frequencies above the Nyquist limit, preventing them from causing aliasing.

Combining these techniques is often used to achieve the best results. The specific approach depends on the application and the nature of the signal being processed.

The Nyquist frequency is crucial in digital audio processing, influencing recording quality, sample rates, and overall fidelity. Understanding its principles helps audio engineers and music producers make informed decisions about equipment and techniques.

The Nyquist frequency is fundamental to digital audio systems. It determines the highest frequency that can be accurately represented in a digital signal, essential for maintaining audio fidelity and preventing aliasing artifacts.

Audio engineers must consider the Nyquist frequency when designing recording and playback systems. It influences the choice of sample rates and filters used in analog-to-digital conversion.

Under Nyquist principles, engineers ensure the audible spectrum is captured without distortion. This is particularly important for high-fidelity recordings and professional audio applications.

The Nyquist frequency directly impacts sample rate selection in digital audio. Higher sample rates allow for a higher Nyquist frequency, enabling the capture of higher audio frequencies.

Common sample rates include:

• 44.1 kHz (CD quality)
• 48 kHz (standard for digital video)
• 96 kHz and 192 kHz (high-resolution audio)

Higher sample rates provide greater headroom for audio processing and can improve the overall sound quality. However, they also increase file sizes and processing requirements.

While not directly related to Nyquist frequency, bit depth works in tandem with sample rate to determine audio resolution. Higher bit depths allow for greater dynamic range and reduced quantization noise.

The Nyquist frequency affects the frequency response of digital audio systems. It sets the upper limit of frequencies that can be accurately reproduced.

Audio quality benefits from a higher Nyquist frequency include:

• Improved high-frequency response
• Reduced aliasing artifacts
• Better transient response

However, the human ear typically cannot perceive frequencies above 20 kHz. This leads to debates about the necessity of extremely high sample rates in consumer audio.

Engineers must balance the theoretical benefits of higher Nyquist frequencies with practical considerations such as file size and processing power.

When recording, engineers should choose sample rates appropriate for the source material. For most music production, 44.1 kHz or 48 kHz is sufficient. Higher rates may be used for critical recordings or when extensive processing is planned.

During mixing, it’s essential to:

• Use high-quality anti-aliasing filters when downsampling
• Be aware of potential aliasing when using digital effects
• Monitor the frequency content of audio signals

Oversampling can be used in plugins and digital audio workstations to reduce aliasing and improve sound quality. This technique effectively raises the Nyquist frequency during processing.

Engineers should also consider the target playback systems when deciding on sample rates and bit depths. This ensures compatibility and optimal sound quality for the end user.

The Nyquist frequency’s applications extend far beyond audio processing. Its principles are crucial in various technological fields, shaping how data is captured, transmitted, and analyzed across domains.

In digital imaging, the Nyquist frequency determines the maximum spatial frequency that can be accurately represented. Image sampling at twice the highest frequency component prevents aliasing artifacts.

This concept is vital in medical imaging, satellite photography, and computer-generated graphics.

Oversampling techniques are often employed to improve image quality. Professionals can reduce noise and increase resolution by sampling at rates higher than the Nyquist frequency.

In computer graphics, the Nyquist frequency influences anti-aliasing methods. These techniques smooth jagged edges in rendered images, enhancing visual quality.

Telecommunications systems rely heavily on Nyquist frequency principles. In digital signal processing, it guides the design of filters and modulators to prevent signal distortion.

Nyquist’s theorem optimizes bandwidth efficiency in data transmission. It helps determine the maximum data rate for a given channel bandwidth.

Nyquist frequency considerations influence ADC (Analog-to-Digital Converter) design in communication systems. Proper sampling rates ensure accurate signal reconstruction.

Error correction codes in digital communications often incorporate Nyquist frequency principles to maintain signal integrity.

Nyquist frequency applications in data acquisition benefit scientific instruments. They ensure accurate measurements in spectroscopy, seismology, and particle physics.

The Nyquist frequency determines the maximum measurable frequency in oscilloscopes and signal analyzers. This guides professionals in selecting appropriate sampling rates for their experiments.

Environmental monitoring systems use Nyquist-based sampling to collect data on air quality, water levels, and seismic activity.

Precision timing in scientific experiments often relies on Nyquist frequency principles to synchronize measurements and control systems.

5G and future wireless technologies utilize Nyquist frequency concepts to maximize spectral efficiency. This enables higher data rates and lower latency in mobile communications.

Quantum computing research incorporates Nyquist frequency principles in qubit state measurement and error correction techniques.

In machine learning and AI, Nyquist-informed sampling strategies optimize data collection for training models. This is particularly relevant in computer vision and speech recognition.

Emerging biomedical technologies, such as brain-computer interfaces, apply Nyquist frequency concepts to capture and interpret neural signals accurately.

The Nyquist frequency is calculated by dividing the sampling rate by 2. For example, if a system has a sampling rate of 44,100 Hz, the Nyquist frequency would be 22,050 Hz. This calculation is essential for determining the maximum frequency that can be accurately represented in a digital signal.

In image processing, the Nyquist frequency affects spatial resolution and aliasing. It determines the highest spatial frequency that can be accurately captured in an image. Exceeding the Nyquist frequency can lead to visual artifacts and loss of detail in digital images.

Aliasing occurs when frequencies above the Nyquist frequency are present in a signal during sampling. These high-frequency components can be mistakenly interpreted as lower frequencies, causing distortion and unwanted artifacts in audio and visual signals.

In signal analysis, the Nyquist frequency is closely tied to the Fourier transform. It represents the highest frequency component that can be accurately represented in the frequency domain. When performing Fourier analysis, frequencies above the Nyquist frequency may appear as lower-frequency aliases.

The sampling rate directly determines the Nyquist frequency. The Nyquist frequency is always half of the sampling rate. Increasing the sampling rate raises the Nyquist frequency, allowing for the accurate representation of higher-frequency components in a signal.

The Nyquist criterion states that to reconstruct a signal accurately, the sampling rate must be at least twice the highest frequency component in the signal. This principle guides the design of sampling systems. It ensures that all relevant frequency components are captured without aliasing.
