Audio Frequency Response Explained In Music Production

DisclosureSome of the links below are affiliate links, meaning that at no additional cost to you, we will receive a commission if you click through and make a purchase. Read our full affiliate disclosure here.

Frequency response is a critical concept in audio engineering that shapes how we perceive and experience sound. It determines how accurately a system reproduces different frequencies, influencing the overall quality and clarity of audio output.

Frequency response measures how an audio system or component reproduces the audible range of sound, typically between 20 Hz and 20 kHz. This quantitative measure is crucial in signal processing and electronics, affecting everything from music production to telecommunications.

A flat frequency response is often desirable in audio equipment, as it indicates that all frequencies are reproduced equally without emphasizing or attenuating specific ranges. However, some devices intentionally color the sound by altering their frequency response to achieve a particular aesthetic or functional goal.

Understanding frequency response empowers audio professionals and enthusiasts to make informed decisions about equipment selection and sound manipulation.

Analyzing frequency response curves allows one to identify potential issues in audio systems and optimize their performance. This knowledge is invaluable for producing high-quality sound across various applications, from home stereo systems to professional recording studios.

    KEY TAKEAWAYS:

    • Frequency response measures how audio systems reproduce different sound frequencies
    • Analysis of frequency response curves helps identify and correct audio reproduction issues
    • Understanding frequency response is crucial for optimizing sound quality in various applications

    Table Of Contents

    1. What Is Frequency Response In Audio Engineering?

    2. The Science Behind Audio Frequency Response

    3. Analyzing Frequency Response Curves

    4. Frequency Response In Different Audio Equipment

    5. Optimizing Frequency Response In Music Production

    6. Advanced Techniques: Frequency Response Manipulation

    7. Key Takeaways For Mastering Frequency Response

    8. FAQ

    Discover A Wide Range Of Studio Recording Equipment | Amazon Studio Recording Equipment

    1. What Is Frequency Response In Audio Engineering?

    Frequency response is crucial in shaping sound quality and the listening experience. It impacts the audible spectrum’s tonal balance, clarity, and audio fidelity.

    Definition Of Frequency Response

    Frequency response in audio refers to how accurately a device or system reproduces sound across different frequencies. It measures the output level for various input frequencies ranging from 20 Hz to 20 kHz. This range covers the full spectrum of human hearing.

    Audio engineers use frequency response graphs to visualize a system’s performance. These graphs plot amplitude (in decibels) against frequency (in Hertz). A flat line indicates even reproduction across all frequencies.

    Ideal frequency response aims for neutrality, meaning no frequencies are artificially boosted or attenuated. However, some audio equipment intentionally colors the sound for aesthetic reasons.

    Importance Of Frequency Response In Music Production

    In music production, frequency response affects every stage of the recording and mixing process. Microphones, preamps, speakers, and headphones have unique frequency response characteristics.

    Understanding these traits helps producers make informed decisions. They can choose equipment that complements their sound or compensates for room acoustics.

    Producers also use frequency response to adjust tonal balance and instrument separation during mixing.

    For mastering engineers, frequency response is crucial for ensuring that a mix translates well across different listening environments.

    How Frequency Response Affects Sound Quality

    Frequency response directly impacts perceived sound quality. A balanced response contributes to clarity, detail, and accurate timbre reproduction.

    Deviations from the flat response can lead to several issues:

    • The bass boost may add warmth but can mask midrange details
    • Midrange dips can make vocals sound distant or unclear
    • Treble peaks often cause listening fatigue

    Speakers with wider frequency ranges generally produce better sound reproduction. They capture more of the audible spectrum, from deep bass to airy highs.

    However, extreme frequency extension is only sometimes necessary. Many listeners can’t perceive ultra-high frequencies, and some music genres don’t utilize the entire range.

    Critical Components Of Frequency Response Curves

    Frequency response curves contain several essential features:

    1. Overall shape: Indicates general tonal balance
    2. Peaks and dips: Reveal emphasis or attenuation at specific frequencies
    3. Roll-off points: Show where bass or treble response starts to diminish

    Engineers also look for:

    • Smoothness: Fewer jagged transitions often correlate with better sound
    • Symmetry: Similar response in left and right channels ensures proper stereo imaging

    Frequency response measurements typically use specialized equipment and test signals. Standard methods include sine wave sweeps and impulse response tests.

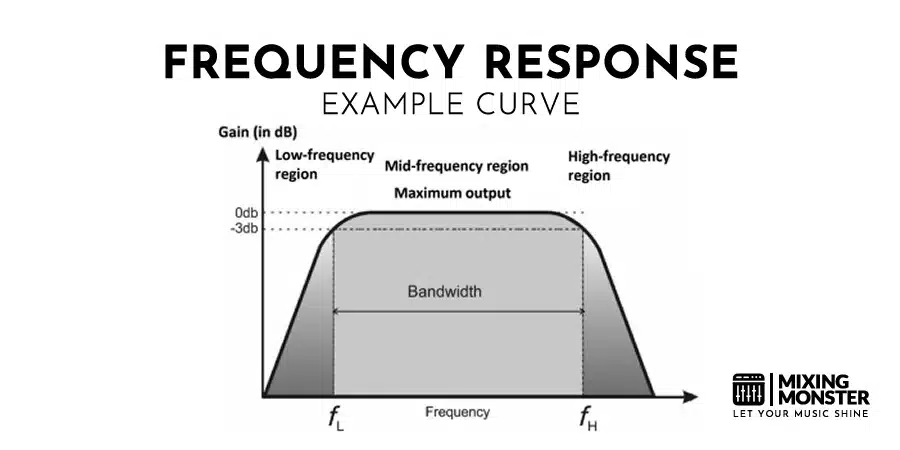

    Frequency Response Curve

    2. The Science Behind Audio Frequency Response

    Audio frequency response is a fundamental concept in sound reproduction and acoustics. It describes how audio systems and human hearing perceive different frequencies across the audible spectrum.

    Understanding this topic requires examining sound waves, human hearing capabilities, and how various instruments produce frequencies.

    Understanding Sound Waves And Frequencies

    Sound waves are vibrations that travel through air or other mediums. These vibrations occur at different rates, measured in Hertz (Hz). One Hz equals one vibration per second.

    Low frequencies produce deep bass tones, while high frequencies create treble sounds.

    Audio systems process these vibrations as electrical signals. When a speaker receives a sinusoidal input, it converts this electrical energy into sound waves. The frequency of these waves determines the pitch we hear.

    Different sound sources produce unique frequency ranges. For example, a bass drum might generate frequencies around 50-100 Hz, while a piccolo can reach up to 4000 Hz.

    Audio Waveforms Explained | Insights For Audio Editors

    Human Hearing Range And Its Implications

    The average human hearing range spans from 20 Hz to 20,000 Hz. This range varies among individuals and typically narrows with age. Low frequencies below 20 Hz, known as infrasound, can often be felt rather than heard.

    On the other hand, frequencies above 20,000 Hz are called ultrasound. While humans can’t hear these, many animals can perceive them. Dogs, for instance, can hear frequencies up to 45,000 Hz.

    Relationship Between Frequency And Pitch

    Pitch is our perception of frequency. As frequency increases, we perceive a higher pitch. This relationship is logarithmic rather than linear. Doubling the frequency results in a pitch increase of one octave.

    Musical notes correspond to specific frequencies. For instance, middle C on a piano has a frequency of about 262 Hz. The A above it is 440 Hz, often used as a tuning standard.

    Frequency And Amplitude

    How Different Instruments Occupy The Frequency Spectrum

    Musical instruments produce complex sounds with multiple frequencies. The lowest frequency, called the fundamental, determines the note’s pitch.

    Additional frequencies, known as harmonics or overtones, give each instrument its unique timbre.

    A violin, for example, produces frequencies ranging from about 200 Hz to 3,500 Hz. In contrast, a pipe organ can generate frequencies as low as 16 Hz and as high as 8,000 Hz.

    Understanding how instruments occupy the frequency spectrum is essential for mixing and mastering audio. It helps sound engineers balance different elements in a recording and ensure clarity across all frequencies.

    Frequency response testing of audio equipment often involves playing tones across the audible spectrum to evaluate how accurately the system reproduces each frequency.

    Audio Frequencies Explained | Frequency Range Guide

    3. Analyzing Frequency Response Curves

    Frequency response curves provide crucial insights into how audio systems and components perform across different frequencies. These graphs reveal essential characteristics that impact sound quality and system behavior.

    Reading And Interpreting Frequency Response Graphs

    Frequency response graphs display how a system responds to different input frequencies. The x-axis represents frequency, typically on a logarithmic scale. Meanwhile, the y-axis shows amplitude, often decibels (dB).

    Key elements to look for include the overall shape of the curve, flatness in the desired frequency range, roll-off at low and high frequencies, and any peaks or dips indicating resonances.

    Engineers use Bode plots to analyze both magnitude and phase response. These plots help identify important system characteristics like bandwidth and stability.

    The -3 dB points on the curve indicate where the signal strength has dropped by half, marking the system’s cutoff frequencies.

    Flat Response Vs. Colored Response

    A flat frequency response aims to reproduce all frequencies equally without emphasizing or attenuating any particular range. This is often considered ideal for accurate sound reproduction.

    Characteristics of a flat response include minimal variation across the audible spectrum and being typically within ±3 dB from 20 Hz to 20 kHz.

    On the other hand, colored responses intentionally shape the frequency curve. This can enhance certain qualities or compensate for system deficiencies. Examples include bass boost for small speakers, mid-range emphasis for vocal clarity, and high-frequency roll-off to reduce harshness.

    The choice between flat and colored response depends on the application and desired sound signature.

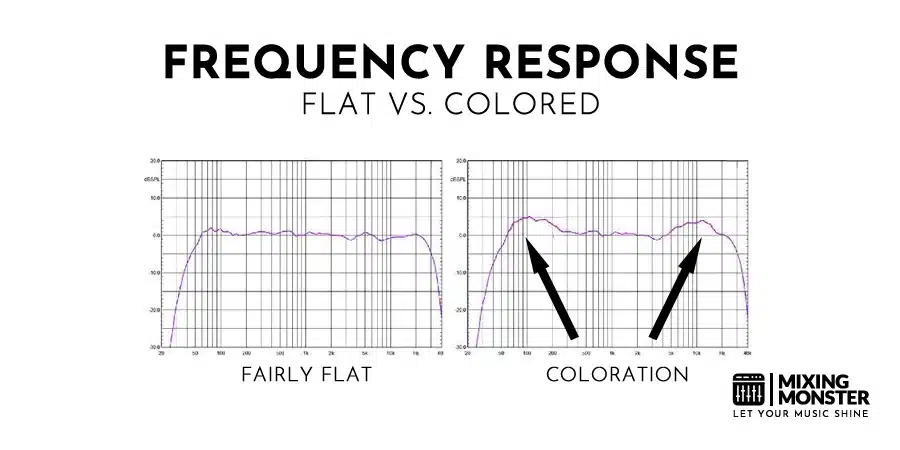

    Frequency Response - Flat Vs. Colored

    Common Frequency Response Patterns In Audio Equipment

    Different audio components exhibit characteristic frequency response patterns.

    For example, loudspeakers often show irregularities due to cabinet resonances and driver limitations. A smooth, gradual roll-off at low and high frequencies is common.

    Microphones, on the other hand, may have presence peaks to enhance vocal clarity. Meanwhile, large-diaphragm condenser mics often exhibit a slight high-frequency boost.

    Amplifiers, especially high-quality models, aim for a flat response across the audible range. However, some intentionally color the sound for a specific “warmth” or character.

    Lastly, digital systems can achieve nearly perfect flat response within their operating range, with sharp cutoffs at the Nyquist frequency.

    Best Studio Gear | Top Picks For Every Budget

    How To Measure Frequency Response

    Accurate frequency response measurement requires specialized equipment and techniques.

    1. Signal generator: Produces test tones across the frequency spectrum.
    2. Measurement microphone: Flat response mic for accurate capture.
    3. Analysis software: Processes recorded signals and generates response curves.
    4. Anechoic environment: Minimizes room reflections for speaker measurements.

    Common measurement methods include swept sine, pink noise, and MLS (Maximum Length Sequence). Oscilloscopes or dedicated audio analyzers for electronic components can make direct input/output measurements.

    Proper calibration and multiple measurement positions are crucial for accurate results, especially when measuring room speakers.

    4. Frequency Response In Different Audio Equipment

    Frequency response plays a crucial role in various audio equipment. Understanding how different devices handle frequency ranges can help achieve optimal sound quality and performance.

    Microphones And Their Frequency Characteristics

    Microphones capture sound waves and convert them into electrical signals. Their frequency response affects how accurately they reproduce different frequencies. Condenser microphones often have a wider frequency range compared to dynamic microphones.

    Some microphones have a flat response, capturing all frequencies equally. Meanwhile, others may emphasize certain frequency ranges for specific applications.

    For example, vocal microphones boost presence frequencies (2-4 kHz) to enhance clarity.

    Microphone frequency response is measured in an anechoic chamber to eliminate room reflections. Manufacturers provide frequency response charts to illustrate a microphone’s performance across the audible spectrum.

    Speakers And Headphones: What To Look For

    Speakers and headphones are responsible for converting electrical signals back into sound waves. Their frequency response determines how accurately they reproduce different frequencies.

    A flat frequency response is often desirable, reproducing audio without coloration. However, some listeners prefer a “colored” sound with enhanced bass or treble.

    Critical factors in speaker and headphone frequency response include the frequency range (typically 20 Hz – 20 kHz), uniformity across the spectrum, and the presence of peaks or dips in specific ranges.

    Headphone drivers come in various types (dynamic, planar magnetic, electrostatic), each with unique frequency response characteristics.

    Cat Squeezed By Headphones

    Audio Interfaces And Their Impact On Frequency Response

    Audio interfaces serve as the bridge between analog and digital audio signals. Their frequency response affects the overall sound quality of recordings and playback.

    High-quality audio interfaces aim for a flat frequency response to maintain signal integrity. They should accurately capture and reproduce the entire audible spectrum without significant coloration.

    Factors influencing audio interface frequency response include analog-to-digital and digital-to-analog converters (ADCs and DACs), preamp quality, and output impedance.

    Some interfaces offer software-based frequency response correction to compensate for any hardware limitations.

    Studio Monitors And Flat Response

    Studio monitors are specialized speakers designed for accurate audio reproduction in professional settings. They aim for a flat frequency response to provide an uncolored representation of the audio material.

    Key characteristics of studio monitors include a wide, flat frequency response, low distortion, accurate stereo imaging, and a neutral sound signature.

    Frequency response measurements for studio monitors often involve specialized equipment and techniques. This ensures that the monitors provide a reliable reference for mixing and mastering.

    Some studio monitors feature built-in room correction technology to compensate for acoustic issues in the listening environment. This helps maintain a flat response in real-world studio settings.

    Shop Curated Selection For Advanced Musicians | Amazon Musical Instruments Pro Store

    5. Optimizing Frequency Response In Music Production

    Optimizing frequency response is crucial for achieving balanced, professional-sounding mixes. Proper equalization techniques, understanding frequency interactions, and using the right tools can significantly improve the overall quality of music production.

    EQ Techniques For Balanced Frequency Response

    Equalization in music plays a vital role in shaping the tonal balance of tracks. Engineers use subtractive EQ to remove unwanted frequencies before applying additive EQ to enhance desired ones.

    Cutting around 200 Hz can reduce boxiness in vocals while boosting specific frequencies reveals hidden details. High-pass filters, typically set between 20-80 Hz depending on the source, help eliminate low-end rumble.

    Carving out space for each element in instruments sharing similar frequency ranges is essential. This technique, known as frequency carving, prevents masking and ensures clarity in the mix.

    EQ Frequency Ranges And Their Impact On Sound

    Using Frequency Response Knowledge In Mixing

    Understanding frequency response is essential for making informed mixing decisions. Engineers analyze the frequency content of individual tracks and the overall mix to identify problem areas.

    Frequency response analysis helps detect resonances, standing waves, and other acoustic issues in the mixing environment. This knowledge allows for more accurate monitoring and better mix translation across different playback systems.

    Considering how different elements interact across the frequency spectrum during mixing is crucial. Balancing the low-end, midrange, and high frequencies ensures a cohesive mix with proper weight and clarity.

    Avoiding Common Frequency-Related Pitfalls

    One common mistake is overemphasizing specific frequency ranges, which leads to an unbalanced mix. Excessive boosting of low frequencies can result in a muddy sound, while too much high-end boost can cause harshness.

    Another pitfall is neglecting the midrange frequencies. The midrange carries essential musical information and requires careful attention to maintain clarity and definition.

    Please address frequency masking to avoid a cluttered mix. Identifying and resolving conflicts between instruments occupying similar frequency ranges is important.

    Tools And Plugins For Frequency Response Analysis

    Spectrum analyzers provide visual representations of frequency content, helping identify problematic areas in the mix. Many digital audio workstations (DAWs) include built-in spectrum analyzers.

    Multiband compressors allow for precise control over specific frequency ranges, helping to tame problematic resonances and achieve a more balanced sound.

    EQ plugins with frequency response graphs offer visual feedback, making identifying and addressing frequency-related issues easier. Some advanced EQ plugins even suggest frequency adjustments based on the input signal.

    Room correction software analyzes the frequency response of a mixing environment and applies corrective EQ, improving monitoring accuracy.

    6. Advanced Techniques: Frequency Response Manipulation

    Frequency response manipulation is a powerful tool in audio engineering. It allows for creative sound design, seamless integration of different sources, and optimal balance in mixes and masters. Understanding these techniques can elevate the quality and impact of audio productions.

    Creative Uses Of Frequency Response In Sound Design

    Sound designers often employ frequency response analysis to craft unique sonic textures. They can dramatically alter a sound’s character by manipulating specific frequency bands.

    One technique involves using the Fourier transform to break down complex sounds into their constituent frequencies. This allows for precise targeting of harmonics, enhancing or suppressing them to achieve desired effects.

    Nonlinear frequency response can be introduced to add richness and depth to sounds. This technique often involves deliberately overdriving equipment or using specialized plugins to generate harmonic content.

    Creative EQ moves can transform ordinary sounds into otherworldly textures. For example, boosting high frequencies while cutting mids can create a glassy, ethereal quality.

    Frequency Response Matching Between Different Audio Sources

    Matching frequency responses between audio sources is crucial for creating cohesive productions. This process often begins with analyzing the spectral content of each source using spectrum analyzers.

    Engineers can use frequency response plots to identify discrepancies between sources. They then apply targeted EQ to align the frequency content, ensuring a smooth blend.

    Dynamic EQ is a powerful tool for this purpose. It allows frequency-specific adjustments that respond to the input signal, maintaining consistency across varying audio material.

    In some cases, deliberately mismatching frequency responses can create exciting contrasts. This technique can make certain elements stand out in a mix.

    Using Frequency Response To Create Space In A Mix

    Creating a sense of space in a mix often involves strategically manipulating frequency response. Careful EQ choices and effects like reverb and delay can achieve this.

    High-pass filtering can clear up the low end, creating more room for bass-heavy elements. This technique helps prevent frequency masking and muddy mixes.

    Carving out specific frequency ranges for different elements can help create depth and separation. For example, slightly cutting the mids of background elements can push them further back in the mix.

    Stereo widening techniques often involve manipulating the frequency response of the sides versus the center. This can create a sense of spaciousness without compromising mono compatibility.

    Phase Issues Due To Stereo Widening

    Mastering Techniques For Optimal Frequency Balance

    Mastering engineers use advanced frequency response techniques to achieve optimal balance across an entire album or EP. This often involves subtle, broad EQ moves to enhance clarity and punch.

    Multiband compression is a vital tool in mastering. It allows for frequency-specific dynamic control, helping to tame problematic resonances without affecting the entire spectrum.

    Bode plots can visualize and adjust a master’s overall frequency response, helping ensure consistency across different playback systems.

    Meanwhile, spectral balancing tools compare a mix’s frequency content to reference tracks or ideal curves. This guides mastering decisions and helps achieve industry-standard frequency distributions.

    7. Key Takeaways For Mastering Frequency Response

    Frequency response reveals how a system handles different frequencies. Understanding this concept is crucial for audio professionals and enthusiasts alike.

    Accurate measurement tools are essential. Engineers rely on specialized equipment to capture precise frequency response data across the audible spectrum.

    Interpreting frequency response graphs requires practice. The horizontal axis represents frequency, while the vertical axis shows amplitude. A flat line indicates a neutral response.

    Room acoustics significantly impact frequency response. Acoustic treatments can minimize unwanted reflections and resonances that color the sound.

    Proper equipment calibration ensures accurate frequency reproduction. Regular maintenance and adjustments are necessary for optimal performance.

    Critical listening skills complement technical measurements. Trained ears can detect subtle frequency imbalances not immediately apparent on graphs.

    Key factors affecting frequency response:

    • Speaker design
    • Amplifier characteristics
    • Room dimensions
    • Listening position

    Frequency response optimization is an iterative process. It often involves a combination of equipment upgrades, room treatments, and careful positioning of audio components.

    Digital signal processing (DSP) can help compensate for frequency response irregularities. However, addressing issues at the source is generally preferable.

    Save On Musical Instruments And Studio Gear | Amazon Deals Of The Day

    8. FAQ

    1) How does frequency response affect the quality of audio in headphones?

    The frequency response of headphones determines their ability to reproduce different sound frequencies accurately. A balanced frequency response contributes to more precise, detailed audio and ensures that bass, midrange, and treble are represented proportionally.

    Meanwhile, headphones with a flat frequency response produce a more neutral sound, allowing listeners to hear the audio as the original recording intended.

    2) What characteristics define a good frequency response for speakers?

    A good frequency response for speakers is typically wide and flat. It should cover the audible range from 20 Hz to 20 kHz with minimal deviations.

    Speakers with a good frequency response accurately reproduce low bass notes and high treble frequencies. They maintain consistent volume levels across different frequencies, producing a balanced and natural sound.

    3) How can the frequency response curve influence an electrical system's performance?

    The frequency response curve affects an electrical system’s ability to process and transmit signals accurately. A flat response curve indicates that the system handles all frequencies equally.

    On the other hand, systems with uneven frequency responses may amplify or attenuate specific frequencies. This can lead to signal distortion or loss of information in particular frequency ranges.

    4) What are the implications of a 20Hz-20kHz frequency response in audio devices?

    A 20 Hz to 20 kHz frequency response covers the entire range of human hearing. It ensures that audio devices can reproduce all audible frequencies.

    This range fully represents deep bass notes and crisp high frequencies. It provides a comprehensive audio experience, capturing all the nuances in music and other sound recordings.

    5) How does human hearing compare to audio equipment's typical frequency response range?

    Human hearing typically ranges from 20 Hz to 20 kHz, aligning with most audio equipment’s standard frequency response. This ensures that audio devices can reproduce all sounds perceptible to the human ear.

    As people age, their ability to hear higher frequencies often diminishes. Audio equipment with an extended high-frequency response may reproduce inaudible sounds to some listeners.

    6) What factors should be considered when evaluating the frequency response of a system?

    When evaluating frequency response, consider the system’s intended use. For example, studio monitors require a flatter response than consumer speakers.

    Examine the amplitude variations across the frequency range. Smaller variations generally indicate more accurate reproduction.
    Also, consider the system’s roll-off at low and high frequencies to understand its full capabilities.

    Related Articles

    Audio Frequencies Explained | Frequency Range Guide 2024
    EQ Frequency Ranges And Their Impact On Sound In 2024

    Featured Articles

    45+ Best Practices For A Perfect Home Studio Setup In 2024
    49+ Music Production Tips | Go From Amateur To Artist 2024
    39+ Ultimate Audio Mixing Secrets | Craft Hit Records In 2024
    35+ Pro Audio Mastering Tips | Achieve Polished Tracks 2024
    29+ Audio Recording Secrets | Capturing Stellar Audio 2024
    21+ Audio Editing Tips For Flawless Music Productions 2024

    You Might Also Be Interested In

    Share This Article!

    Thank You For Reading!

    Thank you for reading our post! We hope you found the insights both informative and valuable. We welcome your thoughts and concerns on the topic, so please feel free to contact us anytime. We’d love to hear from you!

    Mixing Monster - Let Your Music Shine
    Mixing Monster - Let Your Music Shine

    Mixing Monster is a professional music studio with over 25 years of experience in music production and audio engineering. We help people worldwide achieve the perfect tone for their music.

    Table of Contents
    2
    3
    Best Studio Gear | Top Picks For Every Budget
    Save On Musical Instruments & Studio Gear | Amazon Deals Of The Day

    Pin It on Pinterest
