Equalization, or EQ, is the secret weapon of audio professionals and enthusiasts. It’s the tool that can transform a muddy mix into crystal-clear audio or breathe life into lackluster recordings. But what exactly is equalization, and how can it elevate your sound?

Equalization is adjusting the balance between frequency components within an audio signal. This technique allows for the enhancement or reduction of specific frequency ranges, shaping the tonal characteristics of sound. Equalizers come in various forms, from simple bass and treble controls to sophisticated multiband parametric EQs.

Equalizers are essential in recording studios, live sound reinforcement, and consumer audio devices. They enable precise control over the sonic qualities of music, speech, and other audio content.

By mastering the art of equalization, audio engineers and producers can solve many sound issues. They can eliminate unwanted resonances, boost desired frequencies, and create space for each element in a mix.

EQ is not just about fixing problems; it’s about sculpting sound to achieve a desired aesthetic. Whether you’re a budding musician, a podcast creator, or simply someone who appreciates good audio, understanding EQ can open up a world of sonic possibilities.

Equalization shapes the tonal characteristics of audio by adjusting specific frequency ranges. It allows for precise control over the balance and clarity of sound in various applications.

Equalization, or EQ, is a powerful tool for modifying the frequency content of an audio signal. Its primary purpose is to enhance, attenuate, or balance specific frequencies within a sound. EQ can correct recording issues, improve clarity, and create space for different elements in a mix.

Audio engineers and producers use EQ to shape the tonal characteristics of individual tracks and full mixes. It helps remove unwanted resonances, boost desirable frequencies, and achieve a balanced sound spectrum.

EQ can also be used creatively to alter the timbre of instruments or vocals, adding character or emulating different sonic environments. By manipulating frequencies, EQ allows greater control over the audio’s emotional impact and perceived quality.

The frequency spectrum is the range of frequencies present in an audio signal. It typically spans from 20 Hz to 20 kHz, representing the limits of human hearing. Different frequencies contribute to various aspects of sound, such as bass, midrange, and treble.

Low frequencies (20-250 Hz) provide warmth and fullness to a sound. Mid frequencies (250-4000 Hz) contain most of the fundamental tones of instruments and vocals. High frequencies (4-20 kHz) add brightness and air to the audio.

An audio signal consists of these various frequencies combined. EQ works by analyzing the frequency content of this signal and allowing selective adjustment of specific frequency ranges. This process enables precise shaping of the audio’s tonal balance.

Understanding the frequency spectrum is crucial for effective equalization. It allows engineers to identify problem areas and decide which frequencies to boost or cut.

Audio equalizers come in various forms, each designed to shape sound in specific ways. These tools allow precise control over different frequency ranges, enabling audio professionals to enhance, correct, or creatively manipulate sound.

Graphic EQs are visual representations of frequency bands, typically featuring multiple sliders. Each slider controls a fixed frequency band, allowing users to boost or cut specific ranges. Common configurations include 15, 31, or 62 bands.

These equalizers are user-friendly and intuitive. The sliders provide a quick visual reference of the EQ curve, making them ideal for live sound applications. Graphic EQs excel at broad tonal shaping and quick adjustments.

Limitations include fixed Q values and potential phase issues when making extreme cuts or boosts. Despite these constraints, graphic EQs remain popular in live sound reinforcement and home audio systems.

Parametric EQs offer more precise control over frequency manipulation. They typically feature adjustable frequency, gain, and Q (bandwidth) controls for each band.

Key advantages include:

• Precise frequency selection
• Adjustable bandwidth
• Ability to target specific problem frequencies

These features make parametric EQs ideal for detailed sound shaping in recording and mixing environments. Users can pinpoint and address specific audio issues without affecting surrounding frequencies.

Parametric EQs come in full and semi-parametric variants. Fully parametric EQs offer complete control over all parameters, while semi-parametric EQs may have fixed Q values or limited bands.

Dynamic EQs combine traditional equalization with dynamic processing. They apply EQ changes based on the input signal’s amplitude, allowing adaptive frequency adjustments.

Key features:

• Threshold-based operation
• Frequency-specific compression or expansion
• Ability to address issues only when they occur

These equalizers excel at handling problematic frequencies that only appear at certain signal levels. For example, they can tame harsh vocals during loud passages while leaving quieter sections untouched.

Dynamic EQs are useful for de-essing, controlling instrument resonances, and maintaining spectral balance across varying dynamics.

Shelving and filter EQs focus on specific frequency ranges and are often used for broad tonal shaping or problem-solving.

Shelving EQs boost or cut all frequencies above or below a specified point. They come in two types:

• Low shelf: Affects frequencies below the cutoff point
• High shelf: Affects frequencies above the cutoff point

Filters, such as high-pass and low-pass, attenuate frequencies above or below a set point. These are crucial for removing unwanted low-end rumble or high-frequency hiss.

Both shelving and filter EQs are essential for:

• Cleaning up recordings
• Creating space in a mix
• Shaping the overall tonal balance of a track or mix

Their simplicity and effectiveness make them staples in corrective and creative audio processing.

Equalization involves manipulating specific parameters to shape sound. These controls allow precise adjustments to frequency content, boosting or cutting selected ranges and altering the width of affected areas.

EQ operates on different frequency bands, typically divided into low, mid, and high ranges.

The audible spectrum spans from 20 Hz to 20 kHz. Low frequencies (20-250 Hz) affect bass and warmth. Mid frequencies (250 Hz – 4 kHz) influence presence and clarity. High frequencies (4-20 kHz) control brightness and air.

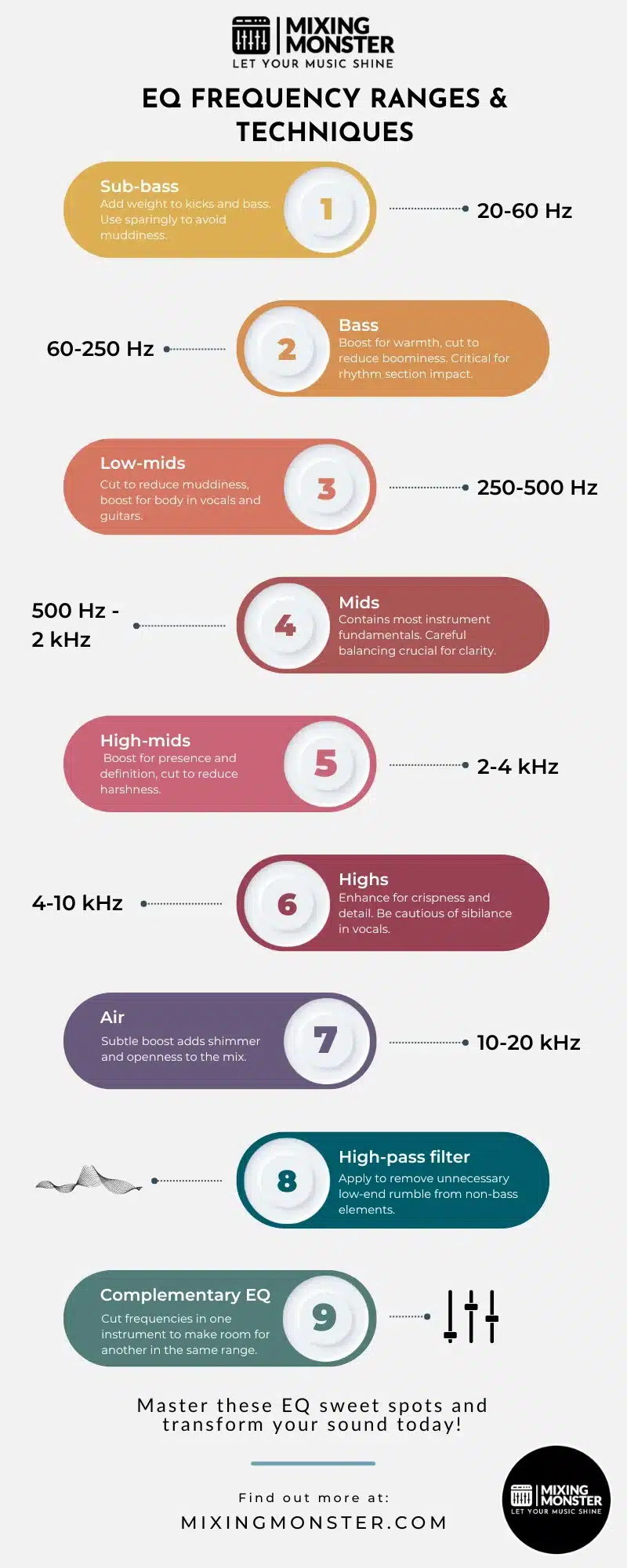

Engineers often target specific frequency ranges:

• Sub-bass: 20-60 Hz
• Bass: 60-250 Hz
• Low-mids: 250-500 Hz
• Mids: 500 Hz – 2 kHz
• High-mids: 2-4 kHz
• Highs: 4-10 kHz
• Air: 10-20 kHz

Understanding these ranges helps in making informed decisions when shaping sound.

EQ allows for boosting (increasing) and cutting (decreasing) specific frequencies. Boosting enhances desired elements while cutting reduces unwanted ones. Generally, cutting is preferred as it preserves headroom and reduces the risk of distortion.

Boosting tips:

• Use sparingly to emphasize pleasant characteristics
• Avoid excessive boosts that may cause harshness

Cutting techniques:

• Surgical cuts to remove problematic frequencies
• Broad, gentle cuts to shape overall tone

It’s often effective to cut first, then boost if necessary.

Bandwidth determines the range of frequencies affected by an EQ adjustment. Q (quality factor) controls the width of this range. A high Q value creates a narrow, focused effect, while a low Q impacts a broader range.

Parametric EQs offer precise control over bandwidth:

• Narrow Q: Useful for targeting specific resonances
• Wide Q: Suitable for general tonal shaping

Engineers adjust Q to fine-tune their EQ moves, balancing precision and musicality.

Gain control allows for boosting or cutting the amplitude of selected frequencies. This parameter determines the intensity of the EQ effect. Typical gain ranges are ±12 dB to ±18 dB.

Key considerations:

• Subtle adjustments (1-3 dB) often suffice
• Larger boosts may introduce unwanted artifacts
• Matching cut and boost levels can help maintain overall balance

Gain adjustments should be made while monitoring levels to avoid clipping or excessive volume changes.

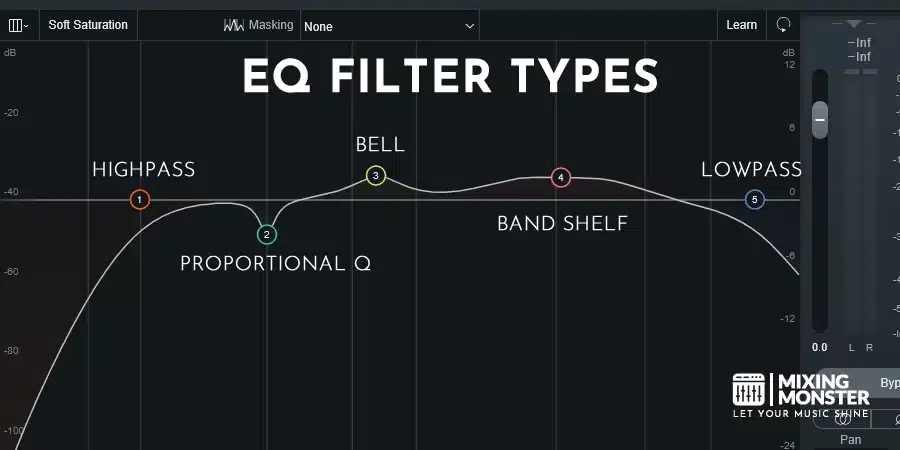

EQ filters shape sound by attenuating or boosting specific frequency ranges. They allow precise control over the tonal characteristics of audio signals. Understanding different filter types enables engineers to make targeted adjustments during mixing and mastering.

High-pass and low-pass filters are essential tools for cleaning up audio.

A high-pass filter attenuates frequencies below a set cutoff point, allowing higher frequencies to pass through. It helps remove low-end rumble or unwanted bass frequencies.

Meanwhile, low-pass filters do the opposite. They attenuate frequencies above the cutoff point and are effective for taming harsh high-end or reducing sibilance in vocals.

Both filters have adjustable slopes, measured in dB per octave. Common slopes include 6 dB, 12 dB, and 24 dB per octave. Steeper slopes result in more aggressive filtering.

Engineers often use high-pass filters on most tracks in a mix to create space and clarity. On the other hand, low-pass filters help shape synths, guitars, and other instruments to sit better in a mix.

Band-pass filters combine high-pass and low-pass filters to allow a specific frequency range to pass while attenuating frequencies above and below. They help isolate particular sound elements or create special effects.

Notch filters, also known as band-reject filters, do the opposite. They attenuate a narrow band of frequencies while allowing others to pass. Notch filters excel at removing unwanted resonances or feedback frequencies.

These filters have adjustable bandwidth, or Q, determining how wide or narrow the affected frequency range is. A high Q results in a narrow surgical effect, while a low Q affects a broader range.

Engineers use band-pass filters to focus on specific elements during mixing or sound design. Meanwhile, notch filters are invaluable for eliminating problematic frequencies in recordings or live sound situations.

Bell filters, also called peak filters, boost or cut a range of frequencies around a center point. They’re the most common filter type in parametric EQs.

Bell filters have three primary parameters: frequency, gain, and Q (bandwidth).

The frequency parameter sets the filter’s center point. Gain determines how much boost or cut is applied, and Q adjusts the width of the affected frequency range.

Bell filters are versatile and can be used for broad tonal shaping and precise frequency adjustments. A wide Q is suitable for general tone adjustments, while a narrow Q allows for surgical precision.

Engineers use bell filters to enhance desirable frequencies or attenuate problematic ones. They’re essential for balancing instruments in a mix and achieving the desired tonal character for individual sounds.

Equalization techniques allow audio engineers to shape sound with precision. These methods involve manipulating specific frequency ranges to achieve desired tonal characteristics.

Subtractive EQ focuses on removing unwanted frequencies from an audio signal. This technique often cleans up a mix and creates space for other elements.

Engineers typically start by identifying problematic frequencies. Then, they apply narrow cuts to reduce or eliminate these frequencies.

This approach helps maintain the natural character of the sound while improving clarity.

Subtractive EQ is particularly effective for addressing issues like resonances, mud, or harshness in a recording. It can also carve out space for different instruments in a busy mix.

By reducing competing frequencies between instruments, subtractive EQ enhances a mix’s overall separation and definition.

Additive EQ involves boosting specific frequencies to enhance desirable qualities in an audio signal. This technique brings out specific characteristics or adds presence to a sound.

Engineers apply broad, gentle boosts to accentuate pleasing aspects of a sound.

For example, boosting high frequencies can add air and brightness to vocals or cymbals.

Additive EQ can also emphasize instruments’ fundamental frequencies, enhancing their core tone. This technique requires careful application to avoid introducing harshness or unnatural coloration.

When used judiciously, additive EQ can bring life and excitement to a mix, helping elements cut through without sounding forced or artificial.

The “cut before you boost” philosophy is a fundamental principle in audio equalization. This approach prioritizes subtractive EQ before resorting to additive techniques.

Engineers first identify and reduce problematic frequencies. They only consider boosting frequencies after addressing issues through cutting.

Cutting before boosting helps maintain headroom and prevent overly processed sounds. It often leads to more natural-sounding results and reduces the risk of phase issues.

This technique is particularly valuable when working with multiple tracks. By cutting competing frequencies across various elements, engineers can achieve better separation and clarity in the overall mix.

Recognizing and addressing problematic frequencies is crucial for achieving a balanced, professional mix. This process involves pinpointing specific frequency ranges that may be causing issues and understanding how they interact within the overall sonic landscape.

Muddiness often occurs in the low-mid frequency range, typically between 200-500 Hz. This can result in a lack of clarity and definition in the mix. Listen for a boomy or undefined quality in the low end to identify muddy frequencies.

Resonances are specific frequencies that ring out or sustain longer than others. They can be detected by sweeping an EQ boost across the frequency spectrum and listening for unnatural emphasis.

Engineers can use spectrum analyzers to identify problematic frequency buildups visually. These tools display the amplitude of different frequencies, making it easier to spot trouble areas.

Masking occurs when one sound obscures another in the same frequency range. To identify masking, solo different tracks and listen for how they interact when played together.

Meanwhile, tonal balance refers to the overall distribution of frequencies in a mix. An imbalanced mix might sound too bright, dark, or hollow.

A/B comparisons with reference tracks can help identify tonal balance issues. This technique allows engineers to compare their mix to professionally produced tracks in the same genre.

Harmonics are integer multiples of a fundamental frequency. Identifying harmonic content is essential for understanding a sound’s tonal characteristics.

Meanwhile, overtones, which include harmonics and other partials, contribute to the timbre of an instrument.

Critical listening techniques can help identify these subtle frequency components.

Using a frequency chart can help you recognize the harmonic series of different instruments. This knowledge helps you make informed EQ decisions to enhance or reduce specific overtones.

EQ plays a crucial role in shaping the sound of individual instruments and the overall mix. Proper EQ application can enhance clarity, balance frequencies, and create space for each element in a production.

Kick drums often benefit from a boost in the low frequencies around 50-100 Hz to enhance their power and impact. A slight cut around 200-300 Hz can reduce muddiness. For added punch, consider a slight boost around 2-4 kHz.

Meanwhile, bass guitars typically need attention in the 80-200 Hz to bring out their fundamental frequencies. A gentle boost of around 700-1000 Hz can improve definition and clarity in the mix.

To prevent low-end buildup, it’s essential to use a high-pass filter on both kick and bass, typically set between 20-40 Hz. This removes inaudible frequencies that can cause unwanted rumble.

Vocals often require a high-pass filter around 80-100 Hz to remove low-end rumble. A slight 3-5 kHz boost can enhance presence and intelligibility.

For sibilance control, apply a narrow cut around 5-8 kHz. To add air and brightness, consider a gentle boost above 10 kHz.

Meanwhile, lead instruments like guitars may need cuts around 200-500 Hz to reduce muddiness and create space for vocals. Boosting the 2-4 kHz range can help them cut through the mix without overpowering other elements.

During mixdown, use EQ to create space for each instrument. This often involves making complementary cuts and boosts across different tracks to prevent frequency masking.

Tonal balance is crucial in mastering. Use a spectrum analyzer to identify frequency imbalances across the entire mix. Apply gentle, broad EQ adjustments to correct these issues.

Treble controls in mastering should be used sparingly. A slight boost around 10-12 kHz can add air and sheen to the mix, but be cautious not to introduce harshness.

Consider using mid-side EQ techniques during mastering to adjust the stereo image. This allows for separate EQ treatment of the center and sides of the mix, enhancing width and depth.

Equalization plays a crucial role in shaping and manipulating audio elements in sound design. It allows designers to craft unique sonic landscapes, remove unwanted noise, and push creative boundaries.

Equalization empowers sound designers to sculpt the timbre and tonal character of sounds. By boosting or cutting specific frequencies, designers can alter the fundamental nature of an audio source.

EQ can add warmth to a thin sound by boosting low-mid frequencies. Conversely, it can create brightness by enhancing high frequencies. This flexibility allows designers to transform ordinary sounds into unique audio elements.

Subtle EQ changes can dramatically impact a sound’s perceived size and depth. Boosting low frequencies can make a sound appear larger while enhancing high mids can push it forward.

EQ is a powerful tool for cleaning up audio and eliminating unwanted elements. Sound designers use it to target and reduce specific problem frequencies.

For example, high-pass filters effectively remove low-frequency rumble or wind noise from recordings. Meanwhile, notch filters can precisely target and attenuate narrow bands of frequencies, which helps eliminate hum or resonances.

EQ also helps mitigate distortion by reducing overloaded frequency ranges. This technique is particularly useful when working with recordings that have clipping or overemphasis in certain areas.

Sound designers push the boundaries of EQ for creative effect. Extreme boosts or cuts can transform familiar sounds into entirely new textures.

Sweeping a narrow EQ band across the frequency spectrum can create otherworldly effects. This technique is often automated for dynamic, evolving sounds.

Designers sometimes use EQ to degrade audio quality, intentionally simulating lo-fi or vintage equipment. This approach can add character to sound effects or dialogue in period pieces.

Combining multiple EQ stages with other effects like distortion or modulation opens up endless creative possibilities. Sound designers leverage these techniques to craft unique sonic signatures for films, games, and other media.

Equalization is fundamental in audio engineering. It shapes sound and solves problems in both live and studio settings. Audio engineers rely on EQ to create balanced mixes and optimize audio quality.

EQ allows audio engineers to sculpt the auditory landscape of a recording or live performance. It helps address issues like frequency masking, where overlapping sounds compete for the same frequency range.

Engineers use EQ to:

• Cut problematic frequencies
• Boost desired tones
• Create space in a mix
• Enhance clarity and definition

Engineers can enhance each instrument or vocal by manipulating specific frequency bands. This process is crucial for achieving a professional sound.

EQ also plays a vital role in correcting issues with recordings or live sound environments. It can help reduce unwanted resonances, minimize feedback, and compensate for room acoustics.

Live sound and studio recording present different challenges for audio engineers regarding EQ applications.

In live sound:

• EQ decisions must be made quickly
• Engineers often deal with feedback issues
• Room acoustics play a significant role
• Changes affect the entire audience in real-time

Studio recording allows for:

• More precise and detailed EQ adjustments
• Multiple EQ passes during mixing
• Greater experimentation with tonal shaping
• Isolated environments with controlled acoustics

Live sound engineers typically use graphic EQs for quick, broad adjustments, while studio engineers prefer parametric EQs for their precision and flexibility.

Both settings require a deep understanding of frequency ranges and how they interact. The goal remains consistent: to create a clear, balanced, and engaging audio experience for the listener.

Advanced equalization techniques offer powerful ways to shape sound with precision and flexibility. These tools give audio engineers enhanced control over the frequency spectrum and stereo image.

Mid-Side EQ separates audio into mid (center) and side (stereo) components for independent processing. This technique allows for precise control over the stereo image and can enhance the width of a mix.

Engineers use Mid-Side EQ to boost clarity in the center while adding space to the sides. This technique is particularly effective for mastering and mixing complex arrangements.

Many digital audio workstations now include Mid-Side EQ plugins. These tools can widen vocals, tighten bass, and create space for instruments in a crowded mix.

However, Mid-Side EQ requires careful application to maintain phase coherence. Excessive processing can lead to stereo image collapse or unnatural sound.

Linear Phase EQ eliminates phase distortion inherent in traditional equalizers. This type of EQ maintains the timing relationship between frequencies, preserving transients and stereo imaging.

Audio engineers often use linear phase EQ for mastering and critical EQ tasks. It excels when maintaining phase relationships is crucial, such as in drum processing or forensic audio work.

However, Linear Phase EQ typically demands more CPU power than minimum phase EQs. It also introduces pre-ringing artifacts, which can be audible on transient-heavy material.

Modern DSP algorithms have improved Linear Phase EQ efficiency, making it more accessible for everyday mixing tasks.

Dynamic EQ combines the precision of parametric EQ with the responsiveness of compression. It applies equalization based on the input signal’s amplitude, allowing adaptive frequency control.

This tool excels at taming problematic resonances without affecting the overall tone. It’s useful for de-essing vocals, controlling boomy bass, or managing harsh cymbals.

Dynamic EQ plugins often feature multiband processing, allowing simultaneous control over multiple frequency ranges. They can respond to the entire signal or be triggered by specific frequency bands.

Engineers use Dynamic EQ to achieve transparent frequency balance in complex mixes. It helps maintain consistency across varying performances and can reduce the need for automation.

Equalization is crucial in optimizing sound playback across different systems and environments. Proper EQ adjustments can significantly enhance audio quality and listener experience.

Playback systems vary widely in their frequency response characteristics. High-end systems often have a flatter frequency response, while budget options may emphasize specific frequencies.

Analyzing your system’s frequency response is essential to identifying any peaks or dips in the audio spectrum. You can do this using measurement tools or listening critically to reference tracks.

Common playback system issues include:

• Boomy bass (excessive low frequencies)
• Harsh treble (overly emphasized high frequencies)
• Muddy midrange (lack of clarity in vocal ranges)

Addressing these issues with EQ can dramatically improve sound quality. For example, reducing a peak around 200 Hz can help clear up muddiness in the low-mids.

Room acoustics significantly impact sound playback. Hard surfaces create reflections, while soft furnishings absorb certain frequencies.

To compensate for room effects:

1. Use a gentle high-pass filter to reduce low-frequency buildup in small rooms.
2. Apply a slight dip around 300-500 Hz to minimize boominess in untreated spaces.
3. Boost high frequencies slightly if the room has excessive absorption.

Windows 11 users can access built-in EQ settings to make these adjustments. Start with subtle changes, typically within ±3 dB, and fine-tune based on careful listening.

Remember that EQ should complement proper room treatment and speaker placement, not replace it. The goal is to achieve a balanced, natural sound across the audio spectrum.

Equalization (EQ) is a fundamental tool in audio production that allows for shaping and balancing frequencies within a sound. It plays a crucial role in creating clean, balanced mixes.

EQ can enhance or reduce specific elements in a recording. This process helps each instrument or sound source find its place in the mix.

Proper EQ techniques involve boosting or cutting specific frequency ranges to achieve the desired sound. It’s essential to approach EQ with a clear purpose and understanding of the audio material.

Key takeaways for proper audio equalization:

• Listen critically before making adjustments
• Use subtractive EQ to remove unwanted frequencies
• Apply boosts sparingly and with purpose
• Consider the context of the entire mix
• Use high-pass filters to remove unnecessary low-end rumble
• Pay attention to phase issues when using multiple EQ plugins
• Experiment with different EQ types (parametric, graphic, dynamic)
• Always compare your changes with the original sound

Understanding the frequency spectrum is essential for practical EQ application. Please familiarize yourself with standard frequency ranges and their associated characteristics in different instruments.

Remember that EQ is a powerful tool that should be used judiciously. Subtle changes often yield the best results in achieving a professional-sounding mix.

Equalization in audio engineering balances frequency levels enhances clarity and corrects tonal issues. Engineers can boost or cut specific frequency ranges to achieve desired sonic characteristics.

Engineers use equalization to remove unwanted resonances, reduce muddiness, and create space for different elements in a mix. It also helps in matching the tonal qualities of different audio sources.

Equalization compensates for channel distortions in digital communication systems and corrects amplitude and phase distortions introduced by the transmission medium.

Equalizers in these systems mitigate intersymbol interference, improving signal quality and reducing bit error rates. They adapt to changing channel conditions, ensuring reliable data transmission.

Equalization adjusts the balance of frequencies in an audio signal, while compression controls dynamic range. EQ shapes the tonal characteristics, whereas compression reduces volume variations.

Equalizers operate in the frequency domain, allowing selective boosting or cutting of specific frequency bands. Compressors work in the time domain, attenuating signals that exceed a specified threshold.

Start with subtle adjustments and use a reference track for comparison. Cut problematic frequencies before boosting desirable ones to maintain headroom.

Use a high-pass filter to remove unnecessary low-end content. Apply narrow cuts for precise problem-solving and wider boosts for general tonal shaping.

When equalizing individual elements, always consider the context of the entire mix. Use your ears and trust them over visual representations.

Over-equalizing can lead to an unnatural sound. Boosting too many frequencies often results in a cluttered mix with reduced clarity.

A common pitfall is failing to consider how EQ changes affect other elements in the mix. Neglecting to address phase issues when using multiple EQ plugins can also cause problems.

Relying solely on visual representations without critical listening can lead to poor decisions. Applying the same EQ settings to tracks without considering their unique characteristics is also problematic.

Hardware equalizers offer tactile control, can impart desirable analog coloration to the signal, and often provide a distinct character and workflow that some engineers prefer.

Software equalizers offer greater flexibility, recall capabilities, and often more precise control. They are typically more cost-effective and allow for unlimited instances in a digital audio workstation.

Both types can deliver professional results. The choice often depends on personal preference, workflow, and specific project requirements.
