EQ and compression are potent tools in audio production. They shape sound and control dynamics. They can transform a mix from amateur to professional when used together effectively. But how exactly do these techniques work in tandem?

EQ (equalization) adjusts the balance of frequencies in an audio signal, while compression reduces the dynamic range between the loudest and quietest parts of a sound.

EQ allows producers to boost or cut specific frequency ranges, enhancing clarity and separation between instruments. Compression, on the other hand, helps control volume inconsistencies and adds punch to tracks. When applied in the correct order and with proper settings, these tools complement each other, creating a polished, balanced mix.

Mastering the interplay between EQ and compression opens possibilities for sound engineers and music producers. By understanding how these techniques interact, one can precisely sculpt audio, bringing out the best in each track while maintaining a cohesive overall sound.

The following sections will delve deeper into the nuances of EQ and compression, providing practical tips and insights for achieving professional-quality mixes.

    KEY TAKEAWAYS:

    • EQ and compression work together to shape sound and control dynamics in audio production
    • The order of applying EQ and compression impacts the final sound and effectiveness of each technique
    • Understanding the interaction between EQ and compression is crucial for achieving professional-quality mixes

    Table Of Contents

    1. What Are EQ And Compression?

    2. The Synergy Between EQ And Compression

    3. Best Practices For Combining EQ And Compression

    4. Advanced Techniques: EQ And Compression In Action

    5. EQ And Compression In Different Genres

    6. Common EQ And Compression Mistakes To Avoid

    7. Key Takeaways For Mastering EQ And Compression

    8. FAQ

    Discover A Wide Range Of Recording Signal Processors | Amazon Recording Signal Processors

    1. What Are EQ And Compression?

    EQ and compression are essential tools in audio engineering for shaping sound. They allow precise control over frequency content and dynamic range to achieve desired tonal qualities and balance in recordings and mixes.

    EQ And Compression In A Classic Channel Strip

    Definition And Purpose Of EQ And Compression In Audio Engineering

    Equalization (EQ) is a technique for adjusting the balance between frequency components within an audio signal. It enables engineers to boost or cut specific frequency ranges to enhance clarity, fix problems, or creatively shape a sound’s character.

    EQ can be used to:

    Compression reduces the dynamic range of an audio signal by attenuating louder parts while leaving quieter parts unchanged. This helps control volume fluctuations and can add punch, sustain, or glue elements together in a mix.

    Key compression parameters include:

    • Threshold: Level at which compression begins
    • Ratio: Amount of gain reduction applied
    • Attack/Release: How quickly compression engages and disengages

    Types Of EQ: Parametric, Graphic, And Dynamic

    Parametric EQ offers precise control over frequency, gain, and bandwidth (Q). It allows targeted adjustments to specific frequency ranges and is highly versatile for corrective and creative applications.

    Graphic EQ divides the frequency spectrum into fixed bands, typically represented by sliders. It provides quick visual feedback and is helpful for broad tonal shaping or live sound reinforcement.

    Dynamic EQ combines equalization with dynamics processing. It applies EQ changes only when the signal reaches a certain threshold, allowing for more natural-sounding and context-sensitive frequency adjustments.

    Understanding EQ Types | Parametric, Graphic & Dynamic

    Types Of Compression And Their Uses

    Compressors come in various types, each with distinct characteristics:

    VCA (Voltage Controlled Amplifier) compressors offer fast, clean compression suitable for drums and percussive sources.

    Optical compressors use a light-sensitive cell, resulting in smoother, more gradual compression often favored on vocals and bass.

    FET (Field Effect Transistor) compressors can impart subtle coloration and are known for their ability to add punch to drums and other transient-rich materials.

    Variable-mu (tube) compressors introduce harmonic distortion and are prized for their warm, vintage character on various sources.

    Multiband compressors divide the signal into frequency bands, allowing independent compression of each band. They’re helpful for complex sources or entire mixes.

    2. The Synergy Between EQ And Compression

    EQ and compression are powerful tools that shape sound. Combined, they can enhance each other’s effects and provide precise control over a signal’s frequency content and dynamics.

    Why EQ And Compression Work Well Together

    EQ and compression complement each other by addressing different aspects of sound. EQ shapes the frequency content, while compression controls dynamics. Together, they offer greater control over the final output.

    In music production, this combination allows for more precise adjustments.

    For example, EQ can boost specific frequencies, while compression can prevent those boosts from becoming too prominent.

    The interaction between EQ and compression also helps create space in a mix.

    By carefully adjusting frequencies and dynamics, elements can sit better together without masking each other.

    EQ Before Compression Vs. Compression Before EQ

    The order of EQ and compression in the signal chain can significantly impact the final sound. Depending on the desired outcome, both approaches have merits.

    EQ before compression allows for shaping the frequency content before dynamics processing. This can be useful for removing unwanted frequencies that might trigger the compressor unnecessarily.

    Compression before EQ, on the other hand, processes the entire frequency spectrum first. This approach can produce a more natural sound as the compressor responds to the whole signal.

    The choice often depends on the specific audio material and the intended result. Many engineers experiment with both methods to determine the best for each situation.

    Audio Signal Chain - Typical Arrangement

    How Compression Can Affect Frequency Balance

    Compression can significantly impact a signal’s frequency balance. Reducing the dynamic range can emphasize certain frequencies while de-emphasizing others.

    For example, heavy compression on a drum loop might bring out the sustain of a kick drum, potentially boosting low frequencies. Similarly, it might accentuate the attack of a snare, emphasizing higher frequencies.

    This effect can be both beneficial and detrimental, depending on the context.

    It’s essential to listen carefully to how compression affects the overall frequency balance of a track.

    In some cases, strategic use of EQ after compression can help restore or adjust the frequency balance as needed.

    Audio Compression - Ratio, Threshold, Attack, Release

    Using EQ To Enhance The Effects Of Compression

    EQ can be used to enhance the effects of compression in several ways.

    By carefully shaping the frequency content before compression, one can control which parts of the signal trigger the compressor.

    For instance, boosting specific frequencies before compression can make the compressor respond more to those frequencies. This technique can add punch to drums or presence to vocals.

    Conversely, cutting specific frequencies before compression can prevent the compressor from reacting to them. This approach can be helpful for de-essing vocals or taming harsh cymbals.

    Post-compression EQ can also be applied to fine-tune the compressed signal, addressing any frequency imbalances introduced by the compression process.

    Get Amazon Prime | Free 30 Day Trial

    3. Best Practices For Combining EQ And Compression

    Effectively combining EQ and compression requires a strategic approach. Proper sequencing and adjustment of these tools can significantly enhance the quality and clarity of audio signals.

    Identifying Problem Frequencies Before Compression

    Before applying compression, it’s crucial to identify and address problematic frequencies. This step helps prevent the compressor from exaggerating unwanted elements in the audio.

    Engineers often use a spectrum analyzer to visualize the frequency content. They look for resonant peaks or excessive low-end that may cause issues.

    Surgical EQ can be applied to notch out specific problem areas. This might include cutting narrow bands around 200-300 Hz to reduce muddiness or attenuating harsh frequencies in the 2-5 kHz range.

    The compressor can work more efficiently on the desired sound elements by cleaning up the signal before compression.

    Removing Resonant Peaks Through Dynamic Equalization

    Using EQ To Shape The Sound Entering The Compressor

    EQ before compression allows for shaping the tone that the compressor will process. This technique can emphasize or de-emphasize specific frequency ranges before dynamic processing.

    Boosting frequencies can make the compressor more sensitive to those areas. For example, boosting low-end before compression can help even out bass frequencies.

    Cutting frequencies before compression can reduce the compressor’s reaction to those ranges. This is useful for de-emphasizing sibilance or controlling overly bright sources.

    EQ should be broad and gentle at this stage, typically using low- and high-shelf filters or wide bell curves.

    Applying Compression To Control Dynamics

    After the initial EQ, compression controls the signal’s dynamic range. The goal is to achieve consistent levels without squashing the audio’s life.

    Key compressor settings to consider include:

    • Threshold: Set to catch the loudest peaks
    • Ratio: Often between 2:1 and 4:1 for subtle control
    • Attack: Adjust to allow or tame transients
    • Release: Set to match the tempo or rhythm of the source

    The gain reduction should be modest, around 3-6 dB for most sources. Heavy compression may require parallel processing to maintain naturalness.

    How To Compress Audio In Mixing | Perfect Compression

    Fine-Tuning With EQ After Compression

    EQ after compression allows for precise tonal adjustments on the dynamically controlled signal. This stage is ideal for enhancing clarity and presence.

    Engineers can use a high-pass filter to tighten the low-end without affecting the compressor’s behavior. Gentle high-frequency boosts can add air and brilliance to the compressed signal.

    Narrow, surgical EQ moves can address any resonances or harshness the compression process introduces.

    It’s important to compare the processed signal with the original to ensure improvements in tonal balance and overall quality.

    4. Advanced Techniques: EQ And Compression In Action

    Advanced EQ and compression techniques offer powerful tools for shaping sound. These methods allow precise control over dynamics and frequency balance, enabling audio professionals to achieve polished, professional-sounding mixes.

    Parallel Compression And How It Interacts With EQ

    Parallel compression, also known as New York compression, involves blending an unprocessed signal with a heavily compressed version of the same signal. This technique preserves transients while adding density and sustain.

    When using parallel compression, EQ can be applied before or after the compression stage.

    Pre-compression EQ shapes the sound entering the compressor, while post-compression EQ fine-tunes the final blend.

    A common approach is subtractive EQ before compression to remove unwanted frequencies. This prevents the compressor from reacting to problematic resonances or sibilance.

    After compression, boosting specific frequency ranges can enhance the desired sound character without triggering excessive compression.

    New York Compression | Audio Mixing's Timeless Secret

    Multiband Compression: When And How To Use It

    Multiband compression divides the audio spectrum into different frequency bands, each with a compressor. This allows for targeted, dynamic control across various parts of the frequency spectrum.

    It’s beneficial for sources with uneven frequency response or varying dynamics across the spectrum. For example, a bass guitar might need more compression in the low end to control boomy notes while leaving the mid and high frequencies less affected.

    To use multiband compression effectively:

    1. Identify problematic frequency ranges
    2. Set appropriate crossover points
    3. Adjust compression settings for each band independently
    4. Balance the output levels of each band

    Multiband compression can also serve as a form of dynamic EQ, allowing for more precise control over a signal’s tonal balance.

    Mulitband Compression

    Sidechain EQ In Compression For Increased Control

    Sidechain EQ in compression involves applying EQ to a compressor’s detector circuit, altering its response to specific frequencies. This technique offers enhanced control over when and how compression is applied.

    A common application is de-essing, where a high-pass filter in the sidechain makes the compressor more sensitive to sibilant frequencies. This allows for targeted reduction of harsh “s” sounds without affecting the overall vocal tone.

    Another use is ducking bass frequencies when the kick drum hits. By boosting low frequencies in the sidechain, the compressor becomes more responsive to the kick, creating space in the mix.

    Sidechain EQ can also help prevent unwanted compression triggering from low-frequency rumble or high-frequency noise.

    Creative Uses Of EQ And Compression In Sound Design

    EQ and compression can be powerful tools for creative sound design, going beyond their traditional roles in mixing.

    Extreme EQ settings can transform sounds dramatically. For instance, a high-pass filter with a steep slope can turn a full-spectrum sound into a thin, telephone-like effect.

    Serial compression, where multiple compressors are chained together, can create unique envelope shapes. Each compressor can affect different aspects of the sound’s attack, sustain, and release.

    Dynamic EQ can create evolving timbres that respond to the input signal’s intensity, adding movement and interest to static sounds.

    Compressors with character, like tube or FET emulations, can be pushed hard to add harmonics and saturation, fundamentally altering the texture of a sound.

    Creative EQ Techniques | Using Equalization As An Effect
    Shop Curated Selection For Advanced Musicians | Amazon Musical Instruments Pro Store

    5. EQ And Compression In Different Genres

    EQ and compression techniques vary significantly across musical genres, tailoring the sound to fit stylistic expectations and enhance critical elements. These tools shape the tone, clarity, and impact of instruments and vocals in genre-specific ways.

    Rock And Pop: Achieving Punch And Clarity

    Rock and pop productions often aim for a punchy, clear sound that cuts through busy mixes. EQ focuses on enhancing clarity and separation between instruments. Engineers typically boost the mid-range of guitars to add presence and cut low-end mudiness.

    For drums, the kick receives a low-end boost of around 60-100 Hz for power, with a high-mid bump for attack. Compression on drums, especially the kick, helps achieve consistency and punch.

    Rock and pop vocals benefit from a slight high-end boost for air and presence. Compression is applied to even out dynamics and maintain intelligibility in dense mixes.

    Instrument EQ Focus Compression Approach
    Guitars Mid-range boost Moderate, for sustain
    Drums Low-end and high-mid Heavy, for punch
    Vocals High-end boost Moderate to heavy

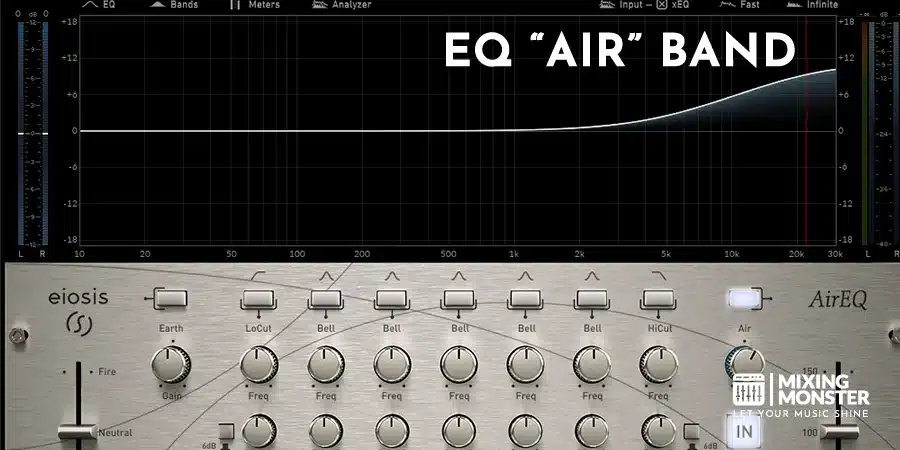

    The EQ Air Band
    Pop Mixing Secrets | Pro Techniques And Tips

    Electronic Music: Crafting Tight, Powerful Bass

    Electronic music relies heavily on EQ and compression to craft precise, powerful sounds. Bass is a critical element, often shaped with multiband compression to control specific frequency ranges independently.

    EQ on bass typically involves a low-end boost of around 50-80 Hz for power, with careful cuts in the low mids to prevent muddiness. High-pass filters on other elements help carve out space for the bass.

    Synths and pads often receive mid-range EQ cuts to create space in the mix. Sidechain compression dumps other elements when the kick hits, creating a pumping effect.

    Drums in electronic music, especially the kick, are heavily compressed for consistency and impact. EQ often emphasizes both low-end thump and high-end clicks.

    Classical And Jazz: Preserving Dynamics While Enhancing Tone

    Classical and jazz recordings prioritize natural dynamics and tonal authenticity. EQ is used subtly to enhance the natural timbre of instruments rather than dramatically alter their sound.

    For orchestral recordings, gentle high-shelf boosts can add air and openness. Mid-range EQ helps balance different sections of the orchestra.

    In jazz, EQ might focus on bringing out the warmth of acoustic instruments. A slight boost in the low mids can enhance the body of the double bass or piano.

    Compression in these genres is typically light if used at all. When applied, it’s often for peak control rather than to alter the overall dynamics. Some engineers use parallel compression to add the body without losing transients.

    Hip-Hop And R&B: Creating Smooth, Polished Vocals

    Hip-hop and R&B productions often feature prominent, polished vocals. EQ on vocals might include a high-pass filter to remove rumble, a boost around 3-5 kHz for presence, and a high-shelf boost for air.

    Vocal compression in these genres is often more aggressive than in other styles. Multiple and parallel compression stages help achieve a smooth, consistent vocal sound.

    Bass in hip-hop and R&B is typically EQ’d for both sub-bass power and mid-range definition. Compression helps maintain consistent bass levels throughout the track.

    Drums, especially in hip-hop, often receive heavy EQ and compression. For example, the kick drum might get a significant low-end boost and tight compression for a punchy, consistent sound.

    Genre EQ Approach Compression Style
    Rock/Pop Mid-range focus Moderate to heavy
    Electronic Precise frequency shaping Heavy, often multiband
    Classical/Jazz Subtle enhancement Light, if any
    Hip-Hop/R&B Vocal presence, bass power Heavy, especially on vocals
    Popular Music Genres | Style And Production Explained

    6. Common EQ And Compression Mistakes To Avoid

    Proper use of EQ and compression is crucial for achieving professional-sounding mixes. Avoiding common pitfalls can significantly improve the quality of your productions.

    Over-Compression: Squashing The Life Out Of Your Mix

    Excessive compression can rob a mix of its dynamics and energy. Compression flattens transients and reduces instruments’ natural ebb and flow when applied too heavily. This often results in a lifeless, two-dimensional sound lacking punch and clarity.

    To avoid over-compression, engineers should:

    • Start with gentler ratios (2:1 or 3:1)

    • Use moderate attack and release times

    • Apply compression in stages across multiple plugins

    • Regularly compare compressed and uncompressed versions

    Parallel compression techniques can help maintain dynamics while adding density. Preserving some of the original signal’s character is essential, so avoid the temptation to crush every track.

    Compressed Vs. Uncompressed Audio Signal

    EQ Overkill: When Less Is More

    Overusing EQ can lead to unnatural, thin, or harsh-sounding tracks. Many beginners need to consider the overall impact on the mix before applying drastic cuts and boosts.

    Best practices for EQ include:

    • Making subtle adjustments (1-3 dB)

    • Using narrower Q values for cuts and wider Q values for boosts

    • Focusing on removing problematic frequencies rather than boosting desirable ones

    • Considering the role of each instrument in the frequency spectrum

    Engineers should achieve a balanced sound with minimal EQ, letting instruments’ natural timbre shine through whenever possible.

    Common EQ Mistakes In Mixing And How To Avoid Them

    Neglecting The Context: Soloing Vs. Full Mix Decisions

    EQing and compressing in solo often lead to decisions that could translate better to the whole mix. While soloing can help identify issues, it’s crucial to make final adjustments in the context of the entire arrangement.

    Tips for maintaining context:

    • Frequently toggle between solo and full mix playback

    Use reference tracks to gauge overall balance

    • Consider how each element interacts with others in the mix

    • Make minor adjustments and assess their impact on the whole mix

    By prioritizing the complete mix perspective, engineers can create more cohesive and balanced productions that translate well across different playback systems.

    Ignoring The Importance Of Gain Staging

    Proper gain staging is fundamental to effective EQ and compression. Neglecting this crucial step can lead to distortion, reduced headroom, and suboptimal plugin performance.

    Key aspects of gain staging include:

    • Setting appropriate input levels for each track

    • Adjusting plugin input and output gains

    Maintaining consistent levels throughout the signal chain

    • Using VU meters or peak meters to monitor levels

    Engineers can ensure their EQ and compression decisions are based on clean, undistorted signals by paying attention to gain staging. This results in more transparent, defined mixes with improved dynamics and clarity.

    Gain Staging Explained | How To Gain Stage Audio

    7. Key Takeaways For Mastering EQ And Compression

    Mastering EQ and compression requires a deep understanding of audio processing techniques. These tools shape the sound and dynamics of a mix, enhancing its overall quality.

    EQ adjustments help elements in a mix sit well together, creating a cohesive sound. Proper EQ can bring clarity and definition to individual tracks and the mix as a whole.

    Compression settings are crucial in controlling dynamics and achieving a balanced sound. The proper compression can add punch, sustain, and glue to a mix.

    Key takeaways for mastering EQ and compression:

    • Use subtle EQ moves to maintain natural sound
    • Apply compression judiciously to control dynamics without squashing the mix
    • Experiment with different compression ratios (e.g., 2:1, 4:1, 6:1) to find the right balance
    • Consider the order of processing – EQ before or after compression can yield different results
    • Utilize parallel compression techniques for added control
    • Pay attention to attack and release times to shape transients effectively
    • Use multiband compression for targeted frequency control
    • Implement sidechain compression for creative effects or mix cohesion

    Happy EQing and compressing!

    Save On Musical Instruments And Studio Gear | Amazon Deals Of The Day

    8. FAQ

    1) What is the ideal order of EQ and compression for vocal tracks?

    Many engineers prefer EQ before compression for vocal tracks. This approach allows for the removal of unwanted frequencies before dynamic processing. Compressing after EQ can help maintain a consistent tonal balance throughout the performance.

    2) How does the combination of EQ and compression affect the sound of a guitar?

    The combination of EQ and compression can dramatically shape a guitar’s tone. EQ can enhance desirable frequencies while cutting problematic ones. Compression afterward can tame dynamic range and add sustain to the guitar sound.

    3) What are the best practices for applying EQ and compression in music production?

    Best practices include subtle adjustments and frequent comparisons. Use EQ to carve out space for each element in the mix. Compression should be applied judiciously to control dynamics without squashing the life out of the sound.

    4) In mastering, which should be applied first: EQ or compression?

    In mastering, EQ is typically applied before compression. This sequence allows tonal adjustments to the overall mix before controlling dynamics. However, some mastering engineers may use multiple stages of EQ and compression.

    5) How does the use of EQ differ from that of compression in audio mixing?

    EQ shapes a signal’s frequency content, while compression controls its dynamic range. EQ adjusts specific frequency bands, whereas compression affects the overall level of the signal based on its amplitude.

    6) What are the effects of using surgical EQ in conjunction with compression?

    Surgical EQ and compression can be used together to target specific frequency issues without affecting the entire signal. This combination allows precise control over problematic resonances while maintaining a consistent dynamic range. It’s beneficial for correcting issues in individual tracks within a mix.

    Related Articles

    The Ultimate Guide To EQ 2025 | Audio Equalization Explained
    How To Compress Audio In Mixing | Perfect Compression 2025

    Featured Articles

    45+ Best Practices For A Perfect Home Studio Setup In 2025
    49+ Music Production Tips | Go From Amateur To Artist 2025
    39+ Ultimate Audio Mixing Secrets | Craft Hit Records In 2025
    35+ Pro Audio Mastering Tips | Achieve Polished Tracks 2025
    29+ Audio Recording Secrets | Capturing Stellar Audio 2025
    21+ Audio Editing Tips For Flawless Music Productions 2025

    You Might Also Be Interested In

    Share This Article!

    Thank You For Reading!

    Thank you for reading our post! We hope you found the insights both informative and valuable. We welcome your thoughts and concerns on the topic, so please feel free to contact us anytime. We’d love to hear from you!

    Mixing Monster - Let Your Music Shine
    Mixing Monster - Let Your Music Shine

    Mixing Monster is a professional music studio with over 25 years of experience in music production and audio engineering. We help people worldwide achieve the perfect tone for their music.

    Table of Contents
    2
    3
    Best Studio Gear | Top Picks For Every Budget
    Save On Musical Instruments & Studio Gear | Amazon Deals Of The Day
    Save On Musical Instruments & Studio Gear | Thomann Hot Deals

    Pin It on Pinterest
