Audio cables are the unsung heroes of sound systems. They connect our devices and deliver the audio we love. From professional recording studios to home entertainment setups, understanding different cable types is crucial for achieving optimal sound quality.
Audio cable types include analog options like XLR, TRS/TS, RCA, and AUX, as well as digital varieties like optical/Toslink cables. Each type serves specific purposes and offers unique benefits. Analog cables use continuous electrical signals to reproduce sound waves, while digital cables transmit audio data as binary code.
XLR cables excel in professional settings, providing balanced signals over long distances. TRS/TS cables offer versatility for various audio equipment, and RCA cables remain popular in consumer electronics. Choosing a suitable audio cable can significantly impact sound quality and system performance.
This guide will explore the characteristics and applications of different audio cable types, helping readers make informed decisions for their audio setups. By understanding the strengths of each cable type, one can optimize their audio experience and avoid common connectivity issues.
KEY TAKEAWAYS:
- Different audio cable types serve specific purposes and affect sound quality
- Balanced cables like XLR are ideal for professional use and long-distance signal transmission
- Matching cable types to equipment needs ensures optimal audio performance and connectivity
Table Of Contents
1. The Fundamentals Of Audio Cable Types
2. XLR Cables: The Professional’s Choice
3. TRS/TS Cables: Versatility In Audio
4. RCA Cables: The Home Audio Staple
5. AUX Cables: Simplicity For Portable Audio
6. Optical/Toslink Cables: Digital Audio Excellence
7. Speaker Cables: Powering Your Sound
8. Choosing The Right Audio Cable For Your Needs
9. Key Takeaways For Navigating Audio Cable Types
10. FAQ
1. The Fundamentals Of Audio Cable Types
Audio cables are essential components in any sound system. They transmit signals between devices and come in various types, each designed for specific purposes and applications in audio setups.
Definition Of Audio Cable Types
Audio cables are specialized conductors that transmit audio signals between audio equipment. They consist of insulated wires enclosed in a protective outer jacket.
Common audio cable types include:
- XLR cables for balanced, professional audio
- RCA cables for consumer-level analog connections
- TRS and TS cables for instrument and line-level signals
- Optical cables for digital audio transmission
Each type serves a unique purpose in audio systems, from connecting microphones to linking amplifiers and speakers.
Basic Components Of Audio Cables
Audio cables typically consist of several key components:
- Conductors: Copper or silver wires that carry the audio signal
- Insulation: Material surrounding individual conductors
- Shielding: Foil or braided metal layer to reduce interference
- Outer jacket: Protective covering for durability
The quality and arrangement of these components affect a cable’s performance. Shielding is crucial for reducing noise interference and maintaining signal integrity, especially in longer cable runs or high-interference environments.
Difference Between Analog And Digital Audio Cables
Analog and digital audio cables transmit signals differently:
- Carry continuous electrical signals that represent sound waves
- Examples include XLR, RCA, and TRS cables
- Known for offering a warm, “authentic” sound
Digital cables:
- Transmit binary data representing audio information
- Examples include optical and coaxial S/PDIF cables
- Provide consistent signal quality over longer distances
Analog cables are more susceptible to signal degradation and interference, while digital cables maintain signal integrity but may introduce latency.
How Cable Quality Affects Sound Transmission
Cable quality significantly impacts audio signal transmission:
- Conductor material: Higher purity copper or silver improves signal flow
- Shielding effectiveness: Better shielding reduces electromagnetic interference
- Connector quality: Gold-plated connectors resist corrosion and ensure solid contact
High-quality cables minimize signal loss, reduce noise, and maintain audio clarity. They are essential for longer cable runs and in professional audio setups where signal integrity is crucial.
Poor-quality cables can introduce:
- Signal degradation
- Increased noise
- Loss of high frequencies
- Distortion in the audio signal
Investing in quality cables can produce cleaner, more accurate sound reproduction, especially in high-fidelity audio systems.
Cable Type | Signal Type | Common Uses | Connector Type |
---|---|---|---|
XLR | Balanced Analog | Professional audio, microphones | 3-pin XLR |
RCA | Unbalanced Analog | Consumer audio, home theater | RCA |
TRS/TS | Balanced/Unbalanced Analog | Instruments, headphones | 1/4″ jack |
Optical | Digital | Home theater, gaming consoles | TOSLINK |
Coaxial | Digital | Home theater, professional audio | RCA or BNC |
2. XLR Cables: The Professional's Choice
XLR cables are the backbone of professional audio setups. They offer superior sound quality and reliability and feature unique design elements that make them ideal for a wide range of audio applications.
What Are XLR Cables And Their Unique Features
XLR cables are balanced audio cables designed for professional use. They typically have three pins: one for the ground, one for the positive signal, and one for the negative signal.
The balanced design allows XLR cables to reject electromagnetic interference, producing cleaner audio transmission. This feature is particularly valuable in long cable runs, where signal degradation can be a concern.
XLR connectors are known for their durability and secure locking mechanism. This ensures a stable connection, which is crucial in live performance settings where accidental disconnections could be disastrous.
XLR Cable Applications In Professional Audio Settings
XLR cables are widely used in recording studios, live sound reinforcement, and broadcast environments. They are the standard for connecting microphones to mixing consoles or preamps.
In live performances, XLR cables connect various audio equipment, including:
- Microphones to mixing boards
- Mixing consoles to power amplifiers
- Audio interfaces to studio monitors
XLR connectors are also used in AV systems, lighting control, and aviation headsets. Their versatility and reliability make them indispensable in professional audio setups.
Advantages Of Balanced Audio Transmission
Balanced audio transmission, a key feature of XLR cables, offers several advantages:
- Noise reduction: The balanced design eliminates common-mode noise, producing cleaner audio.
- Longer cable runs: XLR cables can transmit signals over greater distances without significant quality loss.
- Improved signal integrity: The balanced design helps maintain the original audio signal’s quality.
These benefits make XLR cables the preferred choice for professionals who demand high-quality audio transmission, especially in environments with potential electromagnetic interference.
XLR Connector Types And Pin Configurations
XLR connectors come in various configurations to suit different audio applications. The most common are:
- 3-pin XLR: Standard for balanced audio connections
- 4-pin XLR: Often used for intercom headsets
- 5-pin XLR: Used in some stereo microphone setups
The 3-pin XLR is the most widely used in professional audio. Its pin configuration is:
- Pin 1: Ground/Shield
- Pin 2: Positive (Hot)
- Pin 3: Negative (Cold)
This standardized pin layout ensures compatibility with different audio equipment, making XLR cables a reliable choice for audio industry professionals.
3. TRS/TS Cables: Versatility In Audio
TRS and TS cables play crucial roles in audio connectivity. These versatile cables offer different advantages depending on the application and equipment used.
Explanation Of TRS (Tip-Ring-Sleeve) And TS (Tip-Sleeve) Cables
TRS cables feature three conductors: tip, ring, and sleeve. The tip carries the left audio channel, the ring carries the right, and the sleeve acts as ground. This configuration allows TRS cables to transmit stereo signals or balanced mono signals.
TS cables have two conductors: tip and sleeve. The tip carries the audio signal, while the sleeve serves as ground. These cables are more straightforward and typically used for unbalanced mono signals.
Both cable types come in various sizes, with 1/4″ (6.35mm) and 3.5mm common options.
Differences Between Balanced (TRS) And Unbalanced (TS) Connections
Balanced connections, often using TRS cables, provide better noise rejection. They carry two copies of the same signal, one inverted. At the receiving end, any noise picked up is canceled out.
Unbalanced connections, typically using TS cables, are simpler but more susceptible to interference. They work well for short cable runs or when noise isn’t a significant concern.
Balanced connections are ideal for professional audio setups, while unbalanced connections are common in consumer electronics and musical instruments.
Common TRS/TS Uses In Instruments And Audio Equipment
TRS cables are extensively used in professional audio equipment. They connect mixers, audio interfaces, and other devices that benefit from balanced signals or stereo transmission.
TS cables are prevalent in musical instruments. Electric guitars, basses, and keyboards typically use TS connections. They’re also common in guitar amplifiers and effects pedals.
Headphones often use TRS connections for stereo audio. Some professional headphones use balanced TRS connections for improved sound quality.
How To Identify And Choose Between TRS And TS Cables
Visual inspection is the easiest way to distinguish between TRS and TS cables. TRS connectors have two black rings separating the tip, ring, and sleeve, while TS connectors have only one black ring separating the tip and sleeve.
Consider the equipment and signal type when choosing between TRS and TS cables. TRS cables are appropriate for balanced connections or stereo signals, while TS cables are appropriate for unbalanced mono signals.
Cable length is another factor. TRS cables with balanced connections are preferable for longer runs to minimize noise interference.
4. RCA Cables: The Home Audio Staple
RCA cables are a fundamental component in many home audio setups. These versatile connectors offer simplicity and reliability for transmitting audio signals between devices.
Their widespread adoption and long-standing presence in consumer electronics have made them a staple for audio enthusiasts and casual listeners.
Overview Of RCA Cables
RCA cables consist of a central pin surrounded by a metal ring, forming a male connector that plugs into a corresponding female port. They typically come in pairs, with red and white (or black) connectors for right and left audio channels, respectively.
RCA cables transmit analog audio signals between components such as CD players, amplifiers, and speakers. Their design allows for easy connection and disconnection, making them popular for permanent and temporary audio setups.
In-home theater systems, RCA cables often handle subwoofer connections and stereo audio from various sources. Their simplicity and ubiquity make them a go-to choice for many audio applications.
Historical Significance Of RCA And Current Applications
RCA connectors, hence the name, were introduced in the 1940s by the Radio Corporation of America. Initially used for internal connections in home radio-phonograph consoles, they quickly became an industry standard.
Over decades, RCA cables have remained relevant despite technological advancements. They continue to be used in:
- Stereo systems
- Home theater setups
- DJ equipment
- Professional audio gear
Modern devices still include RCA ports, ensuring backward compatibility with older equipment. This longevity has cemented RCA’s place in audio history and current applications.
Advantages And Limitations Of RCA Connections
RCA cables offer several benefits:
- Easy to use and widely available
- Affordable compared to some newer audio cable types
- Compatible with a vast array of audio equipment
- Capable of transmitting high-quality analog audio signals
RCA connectors do have limitations:
- Unbalanced signal transmission, potentially leading to noise over long distances
- Limited to analog audio (though some variants can carry digital signals)
- It is not ideal for professional audio applications requiring balanced connections
Tips For Using RCA Cables In Home Audio Setups
When using RCA cables in a home audio system:
- Keep cable runs short to minimize signal degradation
- Use high-quality cables with proper shielding for better sound
- Ensure tight connections to prevent signal loss or interference
- Label cables for easy identification in complex setups
Avoid running RCA cables parallel to power cords for optimal performance, as this can introduce noise. When connecting devices, match the color-coded connectors (red to red, white/black to white/black) to maintain proper channel assignment.
In-home theater systems use dedicated subwoofer cables for low-frequency connections. These cables are often single RCA cables designed to effectively handle bass frequencies.
Regular cleaning of RCA connectors with electronic contact cleaners can help maintain good connections and audio quality over time.
5. AUX Cables: Simplicity For Portable Audio
AUX cables provide a straightforward solution for connecting portable audio devices to speakers and sound systems. These versatile cables offer plug-and-play functionality for a wide range of consumer products.
Understanding AUX Cables And Their Connectors

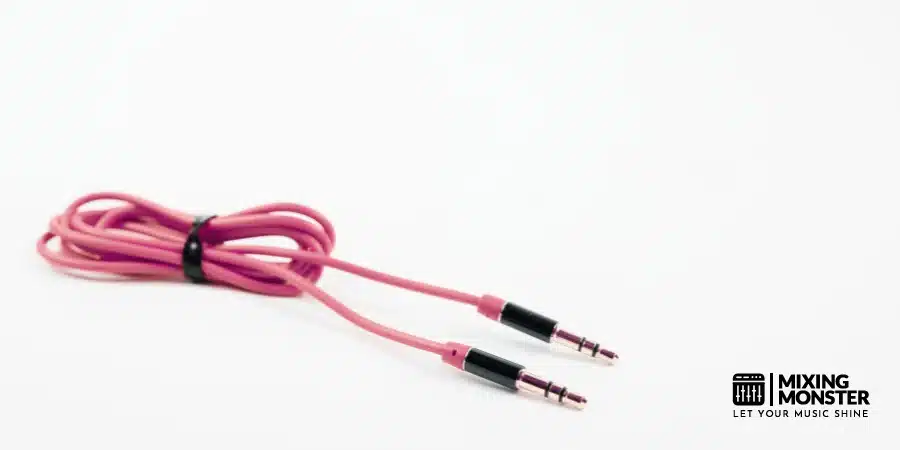

AUX cables, short for auxiliary, typically use a 3.5mm TRS connector. This small, round plug is a mini-jack or headphone jack. The connector has two or three rings, separating it into tip, ring, and sleeve sections.
Standard AUX cables have three conductors: left, right, and ground. TRRS cables include an additional ring, allowing microphone input or video signal transmission.
AUX cables transmit analog audio signals, making them compatible with various devices without needing digital conversion. This simplicity contributes to their widespread use in portable audio setups.
AUX Compatibility With Smartphones, Tablets, And Portable Devices
Most smartphones, tablets, and portable music players feature a 3.5mm AUX port, allowing easy connection to external speakers or car audio systems. However, some newer smartphone models have eliminated the headphone jack, requiring adapters for AUX connectivity.
Portable Bluetooth speakers often include an AUX input as a backup option when wireless connectivity is unavailable. This feature ensures compatibility with older devices or situations where Bluetooth isn’t ideal.
Many car stereos still incorporate AUX inputs, providing a simple way to play music from portable devices through the vehicle’s sound system. This ubiquity makes AUX cables a popular choice for in-car audio.
Pros And Cons Of Using AUX Cables For Audio Transmission
Pros:
- Simple plug-and-play functionality
- Wide compatibility across devices
- No need for pairing or setup
- Minimal latency in audio transmission
Cons:
- Limited cable length due to signal degradation
- Susceptible to electromagnetic interference
- No support for high-resolution audio formats
- Lack of power transmission for charging devices
AUX cables offer reliable audio transmission without batteries or wireless connections. They provide a cost-effective solution for connecting devices, making them popular in home and mobile settings.
Best Practices For Maintaining AUX Cable Quality
To ensure optimal performance and longevity of AUX cables, users should follow these guidelines:
- Avoid sharp bends or kinks in the cable
- Store cables properly when not in use, using cable ties or organizers
- Keep connectors clean and free from debris
- Use strain relief techniques when plugging and unplugging
Investing in high-quality AUX cables with gold-plated connectors can improve signal quality and resistance to corrosion. Users should also be mindful of the cable’s length; longer cables may introduce noise or signal loss.
Regular inspection of AUX cables for signs of wear or damage can prevent audio issues. Replacing frayed or damaged cables promptly helps maintain optimal sound quality and prevents potential short circuits.
6. Optical/Toslink Cables: Digital Audio Excellence
Optical cables, also known as TOSLINK, revolutionized digital audio transmission by using light to carry signals. These cables offer superior sound quality and eliminate electromagnetic interference, making them ideal for high-fidelity audio setups.
Introduction To Optical Audio And Toslink Technology
Optical audio cables use fiber optic technology to transmit digital signals as light pulses. Developed by Toshiba in the 1980s, TOSLINK (Toshiba Link) became the standard for optical audio connections.
These cables consist of a fiber optic core surrounded by cladding and protective layers. The transmitter converts electrical signals to light, which travels through the cable and is reconverted to electrical signals at the receiver.
Optical cables support various digital audio formats, including PCM, Dolby Digital, and DTS. They can transmit stereo and multi-channel audio with high fidelity.
Benefits Of Digital Audio Transmission Over Optical Cables
Optical cables offer several advantages for digital audio transmission:
- Immunity to electromagnetic interference
- No ground loop issues
- Electrical isolation between devices
- High-quality, uncompressed audio transmission
Digital audio transmitted via optical cables maintains signal integrity over longer distances than traditional copper cables, producing clearer sound with minimal distortion.
Optical cables are also durable and resistant to physical damage. They don’t degrade over time like analog connections, ensuring consistent audio quality.
Compatible Devices And Applications Of Optical Cables
Optical cables are widely used in home theater systems, connecting various audio components:
- AV receivers
- Soundbars
- Gaming consoles
- Blu-ray players
- TVs
- Digital audio workstations
Many modern devices feature optical audio ports, making integrating optical cables into existing setups easy. They’re handy for connecting TVs to external sound systems, ensuring high-quality audio output for movies and shows.
Optical cables also find applications in professional audio equipment, studio environments, and live sound systems.
Comparing Optical Cables To Other Digital Audio Connections
Optical cables offer distinct advantages over other digital audio connections:
Feature | Optical | Coaxial | HDMI |
---|---|---|---|
Signal Type | Light | Electrical | Electrical |
Interference | Immune | Susceptible | Susceptible |
Max Resolution | 24-bit/192kHz | 24-bit/192kHz | 32-bit/1536kHz |
Video Capability | No | No | Yes |
While optical cables excel in audio quality and interference rejection, they have limitations. HDMI cables can transmit higher-resolution audio and video, making them more versatile for home theater setups.
Coaxial cables offer similar audio quality to optical but are more susceptible to interference. However, they can be easier to repair and terminate in the field.
7. Speaker Cables: Powering Your Sound
Speaker cables are crucial in delivering high-quality audio from amplifiers to speakers. These specialized cables are designed to handle higher power levels and maintain signal integrity over longer distances.
Differentiating Speaker Cables From Other Audio Cable Types
Speaker cables differ from other audio cables in their construction and purpose. They typically use thicker wire gauges to handle higher current loads and minimize power loss.
Unlike line-level cables, speaker cables don’t require shielding against interference. They carry stronger signals and are less susceptible to external noise.
Speaker cables often use stranded copper conductors to improve flexibility and durability. Some high-end models may incorporate silver or gold-plated connectors for enhanced conductivity.
Importance Of Gauge And Length In Speaker Cable Selection
Cable gauge and length are critical factors in speaker cable performance. Thicker gauges (lower AWG numbers) offer less resistance, reducing power loss over longer runs.
16 AWG cables are usually sufficient for short distances under 50 feet. Longer runs or high-power systems may require 14 AWG or even 12 AWG cables.
Cable length should be kept as short as possible to minimize signal degradation. Excessively long cables can introduce resistance, affecting audio quality and speaker performance.
Banana Plugs, Spade Connectors, And Bare Wire Terminations
Speaker cables can use various termination types:
- Banana plugs: Easy to connect and disconnect, ideal for frequent changes
- Spade connectors: Provide a secure connection suitable for permanent setups
- Bare wire: Offers flexibility but requires careful installation to prevent shorts
Banana plugs and spade connectors can improve connection quality and simplify installation. Meanwhile, bare wire terminations allow for direct connection but require more attention during setup.
Tips For Proper Speaker Cable Installation And Management
Proper installation ensures optimal performance:
- Keep cables away from power cords to avoid interference
- Use cable ties or channels for neat organization
- Avoid sharp bends that can damage internal conductors
- Ensure tight, secure connections at both amplifier and speaker ends
For bi-wiring setups, use identical cable lengths for each connection to maintain consistent impedance. Speaker connectors offer a robust locking solution for professional audio applications, providing secure connections and preventing accidental disconnects.
Regularly inspect cables for wear or damage, especially in high-traffic areas. Replace any cables showing signs of fraying or exposed conductors to maintain optimal sound quality and safety.
8. Choosing The Right Audio Cable For Your Needs
The appropriate audio cable is crucial for achieving optimal sound quality and system performance. The right choice depends on your specific equipment, setup requirements, and budget considerations.
Factors To Consider When Selecting Audio Cables
Several key factors come into play when choosing audio cables. Cable type is paramount, as different connectors suit various audio components.
With balanced cables like XLR offering better noise rejection over longer distances, signal integrity is crucial.
Cable length affects signal quality, so measuring your setup accurately is essential. Shielding protects against interference, especially in environments with many electronic devices.
Conductor material impacts the sound quality, with copper and silver being popular choices. The dielectric, or insulating material, also plays a role in cable performance.
Matching Cable Types To Specific Audio Equipment
Different audio components require specific cable types.
Due to their balanced signal and robust connectors, XLR cables are the go-to choice for professional microphones and mixing consoles. Meanwhile, instruments like electric guitars typically use TS (tip-sleeve) cables.
RCA cables are common for home stereo systems. Digital audio often relies on optical or coaxial cables for S/PDIF connections.
Speakers may use various connectors depending on the amplifier and power requirements. Banana plugs, spade connectors, and Speakon cables are all options for speaker connections.
Budget Considerations And Quality Trade-Offs
Audio cable prices vary significantly, from budget-friendly options to high-end audiophile cables. While expensive cables may offer marginal improvements, they often have diminishing returns.
For most setups, mid-range cables provide a good balance of quality and affordability.
Investing in durable connectors and proper shielding can enhance longevity and performance without breaking the bank.
Consider prioritizing cable quality for critical signal paths between your main audio source and amplifier. More critical connections may require less premium cables.
Future-Proofing Your Audio Setup With Versatile Cable Choices
Opt for versatile cable choices to ensure your audio setup remains relevant as technology evolves.
Universal connectors like 3.5mm aux cables offer compatibility with various devices.
Investing in adapters can extend the usefulness of your cables. For instance, XLR to TRS adapters allow professional microphones to connect to consumer-grade equipment.
Consider digital audio cables that support high-resolution formats. While current equipment may not utilize its full potential, these cables will be ready for future upgrades.
Modular cable systems with interchangeable connectors offer flexibility for changing setups. This approach allows you to adapt to new equipment without replacing cable runs.
9. Key Takeaways For Navigating Audio Cable Types
Audio cables are crucial in connecting audio components and ensuring optimal sound quality. Understanding the different types and their uses is essential for any audio setup.
XLR cables are ideal for professional audio applications. They provide balanced connections, allowing for longer cable runs without signal degradation. These cables are commonly used for microphones and line-level signals.
RCA cables are widely used in consumer audio equipment. They typically come in pairs (red and white) for stereo connections and are suitable for shorter distances.
3.5mm (1/8 inch) cables are standard for consumer devices like smartphones and laptops. They can be used for headphones, speakers, and auxiliary inputs.
Speaker cables are designed specifically for connecting loudspeakers to amplifiers. They offer a secure locking mechanism and can handle high power levels.
When choosing audio cables, consider factors such as:
- Signal level (mic, instrument, line, or speaker)
- Cable length required
- Balanced vs. unbalanced connections
- Connector types on equipment
Investing in high-quality cables can make a noticeable difference in sound quality. Proper cable management and maintenance will ensure longevity and optimal performance.
10. FAQ
1) What are the differences between analog and digital audio cables?
Analog cables, like RCA and XLR, transmit continuous electrical signals that mimic sound waves. Meanwhile, digital cables, such as optical or coaxial, carry binary data representing audio information. Analog cables are known for their warm sound quality and are commonly used in traditional audio setups. On the other hand, digital cables excel in transmitting high-resolution audio without signal degradation over longer distances.
2) How do you identify various audio cable connectors and their uses?
Audio cable connectors can be identified by shape, size, and pin configuration. TS (Tip/Sleeve) connectors are commonly used for instrument cables, while TRS (Tip/Ring/Sleeve) connectors are found on balanced audio cables. Meanwhile, XLR connectors, with their three-pin design, are frequently used for microphone cables and balanced line-level signals. Lastly, RCA connectors are often used for consumer audio equipment and unbalanced connections.
3) What are the most common types of cables used for speaker connections?
Speaker cables are widely used for connecting loudspeakers to amplifiers in professional audio setups. They provide a secure locking connection and can handle high power levels. Banana plug and binding post connections are common in home audio systems. Speaker wire with bare ends is also frequently used, especially in custom installations.
4) Which cable types typically connect audio components in a home theater system?
HDMI cables carry high-quality audio and video signals and are the primary connection type in modern home theater systems. Meanwhile, optical (TOSLINK) and coaxial digital cables are used for audio-only connections between devices. Lastly, some setups still use RCA cables for analog audio connections. Multi-channel analog cables or speaker wires may connect amplifiers to speakers for surround sound systems.
5) What factors should be considered when choosing cables for high-quality audio transmission?
Factors such as signal type (balanced or unbalanced), cable length, shielding, and connector quality should be considered when selecting audio cables. For professional audio setups, balanced cables like XLR are preferred for longer runs to minimize interference. Cable material and construction can impact sound quality. High-quality conductors and proper shielding help maintain signal integrity and reduce noise.
6) Can you explain the main audio cable sizes and their compatibility with different devices?
The 3.5mm (1/8 inch) audio cable is widely used for headphones, smartphones, and portable devices. It’s compatible with most consumer audio equipment and some professional gear. 1/4-inch (6.35mm) connectors are common in professional audio equipment, including mixers, audio interfaces, and instrument cables. They are available in TS and TRS varieties for different applications. XLR cables with larger connectors are standard in professional audio for microphones and balanced line-level signals. They’re commonly used with audio interfaces, mixers, and high-end audio equipment.
